Home / Skyline Series - Manhattan High Gloss Metallic

  • Factory Built and Assembled
  • Check for lead time updates here
  • Standard with CARB II compliant all plywood box
  • Doors are mounted on a white painted face frame - Frame does not match door finish/texture.
  • Doors/Drawer Fronts - 3/4" thick melamine faced MDF with scratch resistant high gloss lacquer finish
    • 2x as scratch resistant as thermofoil (PVC/PET)
    • 6x more scratch resistant than acrylic
    • Edges sealed with color-matched PVC edge banding
    • Full-overlay design
  • Dovetail, full-extension, soft-close drawers
  • Soft-close hinges standard

Our factory built Skyline Series cabinets come with the following advantages, regardless of door style:

  • Quick Ship - Orders typically ship in 2-3 weeks and are typically delivered within 4 weeks - Fully assembled and ready to install
    • Check for lead time updates here
  • Limited Lifetime Warranty - All Skyline Series cabinets come with a Limited Lifetime Warranty so you can purchase with confidence.  You can view the warranty specifics here - Skyline Series Warranty
  • Hundred's of SKU's available to accommodate the vast majority of kitchen designs and preferences.
  • All plywood boxes - STANDARD
  • Dovetail, full-extension, soft-close drawers - STANDARD
  • Soft-close hinges - STANDARD

To see our full selection of Skyline Series door styles, click here - Skyline Series



1. INTERIOR

    Natural birch vinyl laminate provides a durable, wipe clean finish.
    2.  FACE FRAME

      1 1⁄2” wide x 3/4" thick solid hardwood pocket screwed.
      3.  END PANELS

        1/2" thick CARB2 plywood, exterior vinyl laminate is color matched to the face frame.
        4.  FLOOR & CEILING

          1/2" thick CARB2 plywood, both sides captured by end panels.
          5.  BACK PANELS

            1/2" thick CARB2 plywood with natural birch vinyl laminate interior and raw exterior. The ‘clipped’ back panels on Wall Angle and Easy Reach Corner cabinets will be 1/4” plywood.
            6.  I-BEAM SUPPORTS

            1/2" thick CARB2 plywood, full depth braces provide stability and support for countertop attachment.
            7.  ADJUSTABLE SHELVES

              3/4" thick CARB2 plywood finished with natural birch vinyl laminate and matching edgebanding. Base and wall adjustable shelves are full depth.
              8.  SHELF SUPPORTS

                Clear, high strength plastic with locking top tab to prevent shelf tip. Provides easy shelf adjustment.
                9.  DOORS

                  Contemporary, full-overlay doors available in a durable melamine finish.
                  10.  HINGES

                    Fully concealed 110° opening Soft Close hinges with 6-way adjustment for ease of alignment.
                    11.  RUNNERS/GLIDES

                      Drawers feature smooth gliding, full extension,
                      ball bearing runners with Soft Closing shocks that engage when drawer is 1” from closed. Interior roll out trays have epoxy coated side mount runners. Both are rated for 100lb static and 75lb dynamic loads.

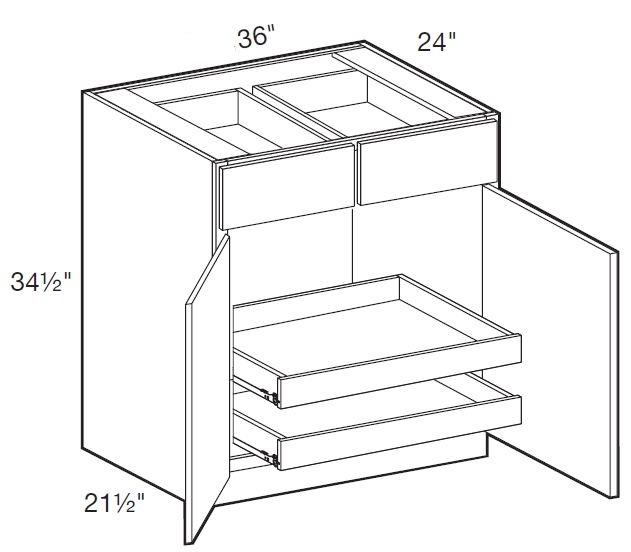

                      12.  DRAWERS & ROLL-OUT TRAYS

                      5/8" thick finger jointed hardwood four sided dovetail box construction, finished with a clear top coat and a 1/4" thick captured plywood floor.

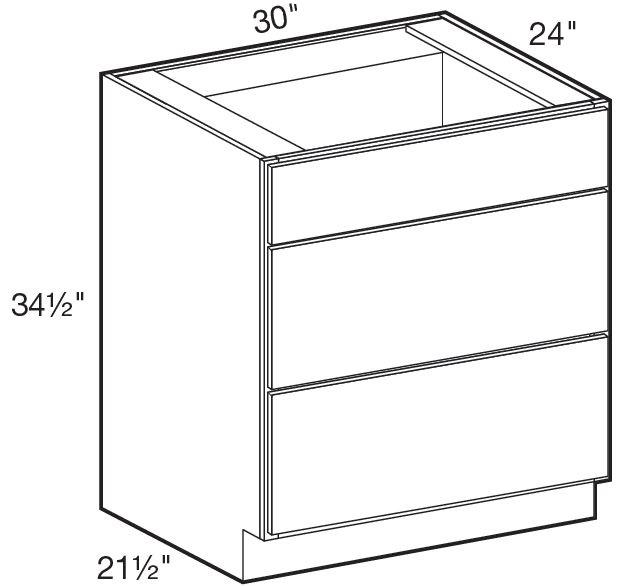

                      13.  DRAWER FRONTS

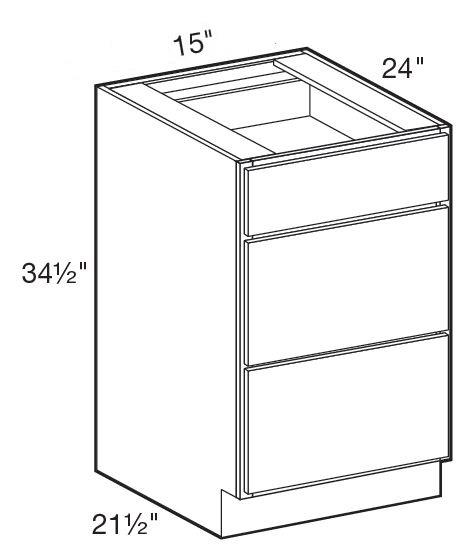

                      Contemporary, full-overlay drawers available in a durable melamine finish. The top drawer front is 8" high & the bottom two drawer fronts are 10 1/2" high
                      14.  INTEGRAL TOE KICK

                      1/2" thick plywood secured between end panels. Provides solid backing for installation of Matching Toe Kick (MTK8) or other materials such as ceramic, vinyl, etc.

                      $1,138.85 $569.42
                      $1,062.74 $531.37
                      $783.30 $391.65
                      $961.56 $480.78
                      $1,138.85 $569.42
                      $876.44 $438.22
                      $1,076.78 $538.39
                      $1,216.00 $608.00
                      $1,277.11 $638.55
                      $1,555.56 $777.78
                      $1,905.11 $952.55
                      $876.44 $438.22
                      $1,183.93 $591.97
                      $965.56 $482.78
                      $1,194.96 $597.48
                      $1,423.30 $711.65
                      $965.56 $482.78
                      $1,302.11 $651.05
                      $1,504.48 $752.24
                      $1,603.59 $801.79
                      $1,050.70 $525.35
                      $1,303.11 $651.55
                      $1,554.52 $777.26
                      $1,055.70 $527.85
                      $1,424.33 $712.16
                      $1,141.85 $570.92
                      $1,420.30 $710.15
                      $1,697.78 $848.89
                      $1,149.89 $574.95
                      $1,552.52 $776.26
                      $1,224.00 $612.00
                      $1,529.48 $764.74
                      $1,833.96 $916.98
                      $1,237.04 $618.52
                      $1,668.74 $834.37
                      $876.44 $438.22
                      $876.44 $438.22
                      $1,001.63 $500.81
                      $1,001.63 $500.81
                      $1,221.00 $610.50
                      $1,730.78 $865.39
                      $714.15 $357.07
                      $814.33 $407.17
                      $914.48 $457.24
                      $1,124.81 $562.40
                      $1,366.22 $683.11
                      $1,923.11 $961.55
                      $122.22 $61.11
