Our factory built Woodline Series cabinets are made in America and come with the following advantages, regardless of door style:
To see our full selection of Woodline Series door styles, click here - Woodline Series
![]() |
![]() |
![]() |
1. INTERIOR |
Natural birch vinyl laminate provides a durable, wipe clean finish. Prepped for glass (PFG) and No Door (ND) cabinets have matching interiors standard. |
2. FACE FRAME |
1 1⁄2” wide x 3/4" thick solid hardwood pocket screwed. |
3. END PANELS |
1/2" thick CARB2 plywood, exterior vinyl laminate is color matched to the face frame. |
4. FLOOR & CEILING |
1/2" thick CARB2 plywood, both sides captured by end panels. |
5. BACK PANELS |
1/2" thick CARB2 plywood with natural birch vinyl laminate interior and raw exterior. The ‘clipped’ back panels on Wall Angle and Easy Reach Corner cabinets will be 1/4” plywood. |
6. I-BEAM SUPPORTS |
1/2" thick CARB2 plywood, full depth braces provide stability and support for countertop attachment. |
7. ADJUSTABLE SHELVES |
3/4" thick CARB2 plywood finished with natural birch vinyl laminate and matching edgebanding. Base and wall adjustable shelves are full depth. |
8. SHELF SUPPORTS |
Clear, high strength plastic with locking top tab to prevent shelf tip. Provides easy shelf adjustment. |
9. DOORS |
Stylish, full-overlay 3/4" thick x 3" wide solid maple Shaker mortise and tenon framed doors with 5/8" thick veneer over MDF recessed center panels |
10. HINGES |
Fully concealed 110° opening Soft Close hinges with 6-way adjustment for ease of alignment. |
11. RUNNERS/GLIDES |
Drawers feature smooth gliding, full extension, |
12. DRAWERS & ROLL-OUT TRAYS |
5/8" thick finger jointed hardwood four sided dovetail box construction, finished with a clear top coat and a 1/4" thick captured plywood floor. |
13. DRAWER FRONTS |
Stylish, full-overlay 3/4" thick x 3" wide solid maple Shaker mortise and tenon framed drawers with 5/8" thick veneer over MDF recessed center panels. |
14. INTEGRAL TOE KICK |
1/2" thick plywood secured between end panels. Provides solid backing for installation of Matching Toe Kick (MTK8) or other materials such as ceramic, vinyl, etc. |
Specs General SpecsAngle Crown MoldingLength - 96 inchesThickness - 3/4 inchesRise - 2 5/8 inches...

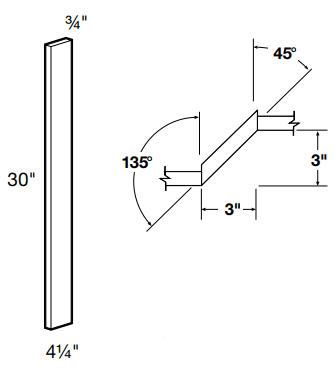

Specs General SpecsAngle FillerHeight - 30 inchesThickness - 3/4 inchesWidth - 3 inchesAdditional...

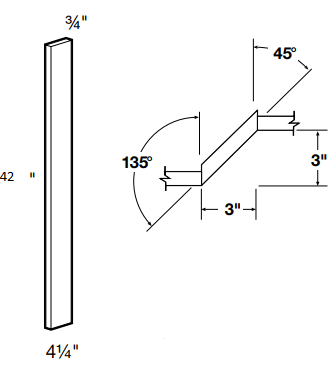

Specs General SpecsAngle FillerHeight - 42 inchesThickness - 3/4 inchesWidth - 3 inchesAdditional...

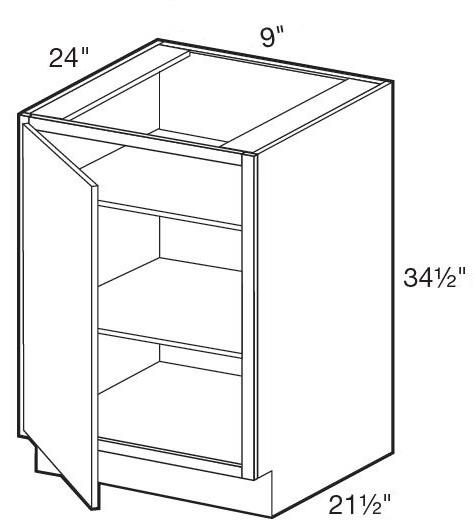

Specs General SpecsBase CabinetHinges On LeftSingle DoorWidth - 9 inchesDepth - 24 inchesHeight -...
Specs General SpecsBase CabinetHinges On RightSingle DoorWidth - 9 inchesDepth - 24 inchesHeight ...
Specs General SpecsBase CabinetInterior Finished To Match FrameNo DoorWidth - 9 inchesDepth - 24 ...

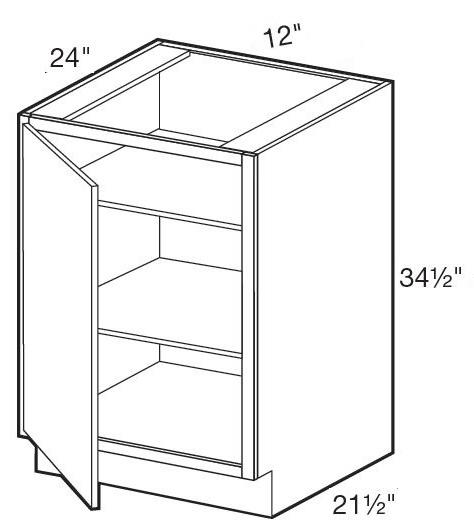

Specs General SpecsBase CabinetHinges On LeftSingle DoorWidth - 12 inchesDepth - 24 inchesHeight ...

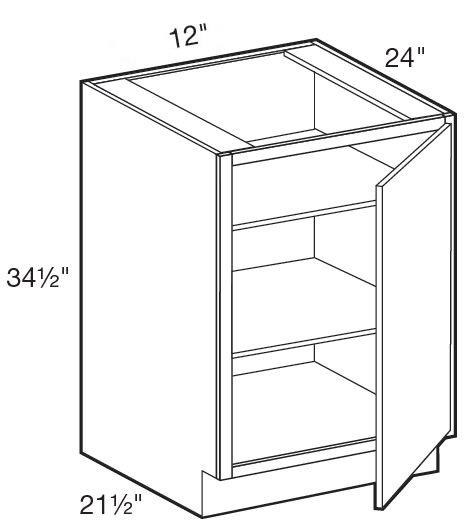

Specs General SpecsBase CabinetHinges On RightSingle DoorWidth - 12 inchesDepth - 24 inchesHeight...

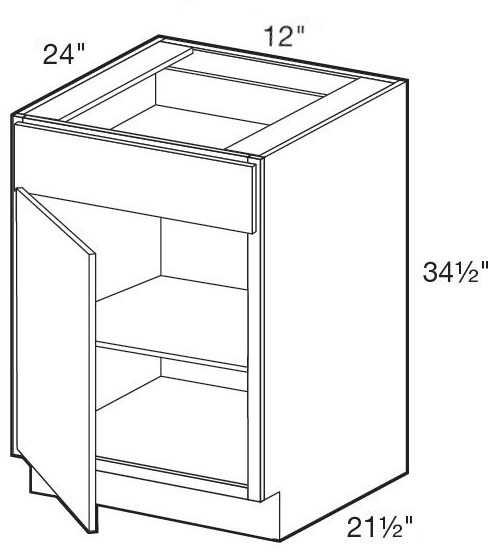

Specs General SpecsBase CabinetHinges On LeftSingle Door/Single DrawerWidth - 12 inchesDepth - 24...

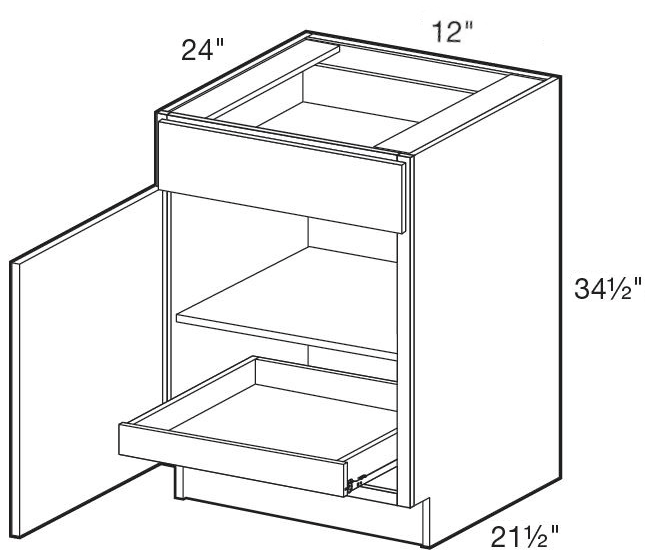

Specs General SpecsBase CabinetHinges On LeftSingle Door/Single Drawer - 1 Rollout TrayWidth - 12...

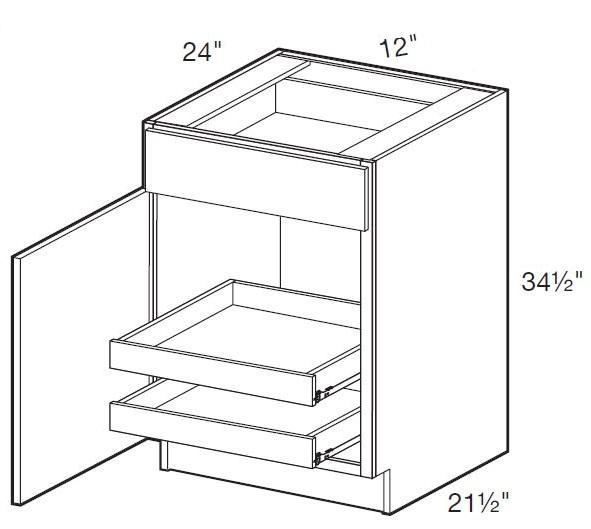

Specs General SpecsBase CabinetHinges On LeftSingle Door/ Single Drawer - 2 Rollout TraysWidth - ...

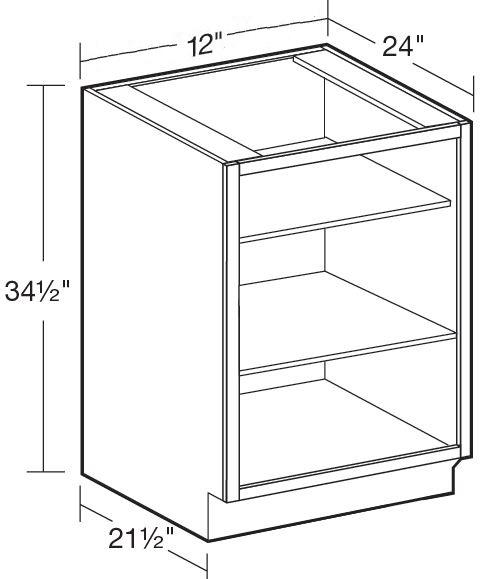

Specs General SpecsBase CabinetInterior Finished To Match FrameNo DoorWidth - 12 inchesDepth - 24...
Specs General SpecsBase Cabinet Hinges On RightSingle Door/Single DrawerWidth - 12 inchesDepth - ...
Specs General SpecsBase Cabinet Hinges On RightSingle Door/Single Drawer - 1 Rollout TrayWidth - ...
Specs General SpecsBase CabinetHinges On RightSingle Door/Single Drawer - 2 Rollout TraysWidth - ...
Specs General SpecsBase CabinetHinges On LeftSingle DoorWidth - 15 inchesDepth - 24 inchesHeight ...
Specs General SpecsBase CabinetHinges On RightSingle DoorWidth - 15 inchesDepth - 24 inchesHeight...
Specs General SpecsBase CabinetHinges On LeftSingle Door/Single DrawerWidth - 15 inchesDepth - 24...

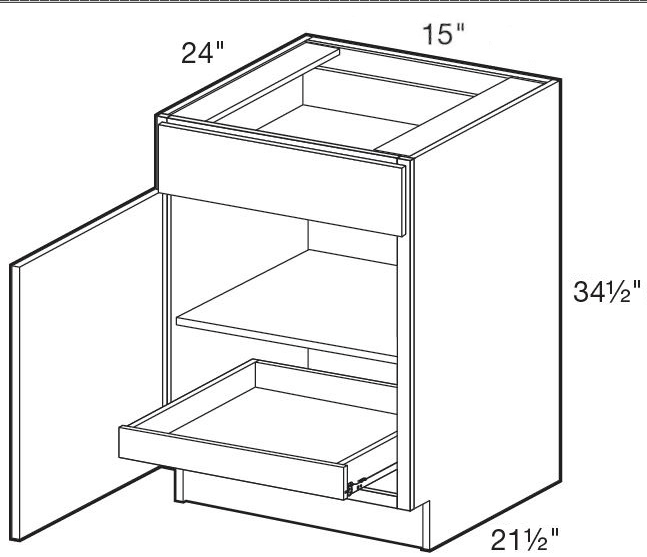

Specs General SpecsBase CabinetHinges On LeftSingle Door/Single Drawer - 1 Rollout TrayWidth - 15...
Specs General Specs Base Cabinet Single Door/Single Drawer Width - 15 inches Depth - 24 inches He...
Specs General SpecsBase CabinetHinges On LeftSingle Door/ Single Drawer - 2 Rollout TraysWidth - ...

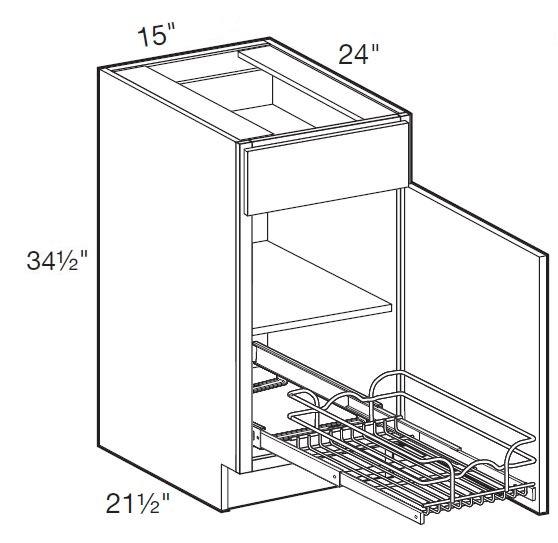

Specs General SpecsBase CabinetSingle Door/Single DrawerWidth - 15 inchesDepth - 24 inchesHeight ...
Specs General SpecsBase CabinetSingle Door/Single DrawerWidth - 15 inchesDepth - 24 inchesHeight ...
Specs General SpecsBase CabinetInterior Finished To Match FrameNo DoorWidth - 15 inchesDepth - 24...

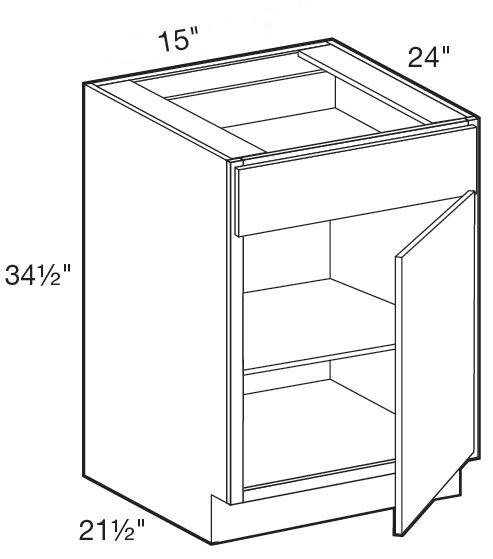

Specs General SpecsBase Cabinet Hinges On RightSingle Door/Single DrawerWidth - 15 inchesDepth - ...
Specs General SpecsBase Cabinet Hinges On RightSingle Door/Single Drawer - 1 Rollout TrayWidth - ...

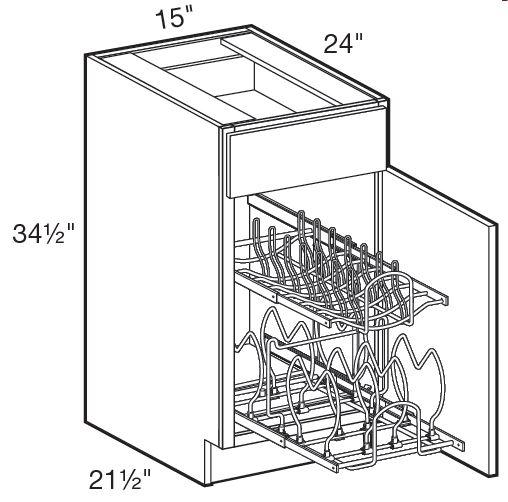

Specs General SpecsBase CabinetSingle Door/Single DrawerWidth - 15 inchesDepth - 24 inchesHeight ...

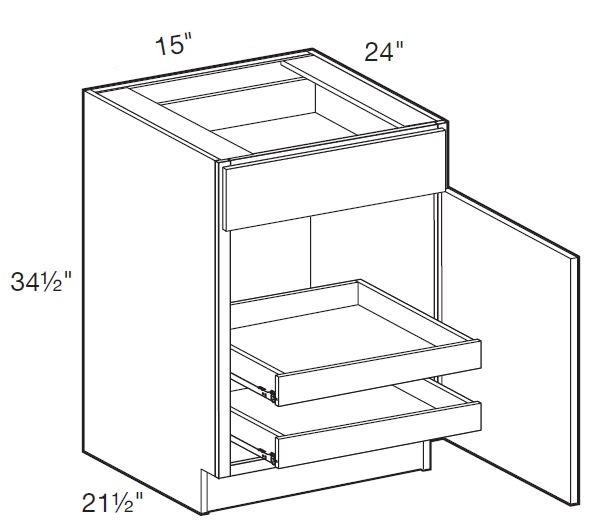

Specs General SpecsBase CabinetHinges On RightSingle Door/Single Drawer - 2 Rollout TraysWidth - ...
Specs General SpecsBase CabinetSingle Door/Single DrawerWidth - 15 inchesDepth - 24 inchesHeight ...
Specs General SpecsBase CabinetSingle Door/Single DrawerWidth - 15 inchesDepth - 24 inchesHeight ...

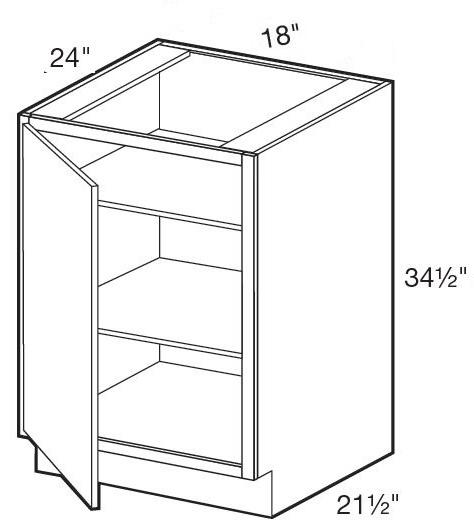

Specs General SpecsBase CabinetHinges On LeftSingle DoorWidth - 18 inchesDepth - 24 inchesHeight ...

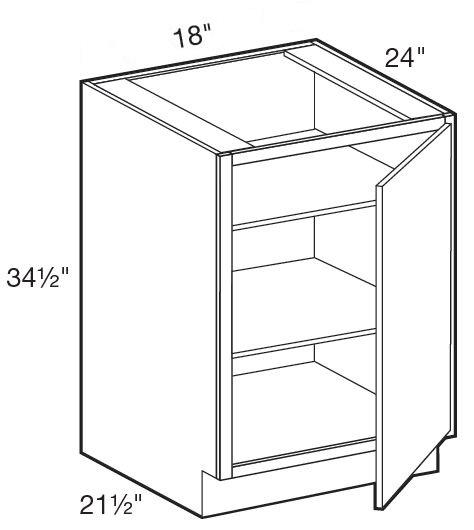

Specs General SpecsBase CabinetHinges On RightSingle DoorWidth - 18 inchesDepth - 24 inchesHeight...

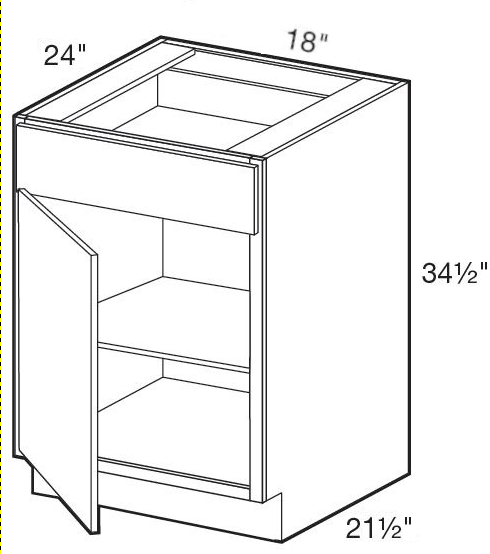

Specs General SpecsBase CabinetHinges On LeftSingle Door/Single DrawerWidth - 18 inchesDepth - 24...

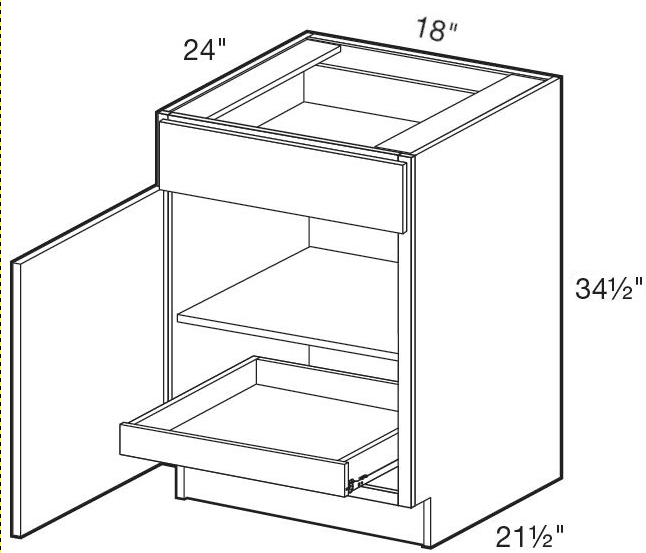

Specs General SpecsBase CabinetHinges On LeftSingle Door/Single Drawer - 1 Rollout TrayWidth - 18...

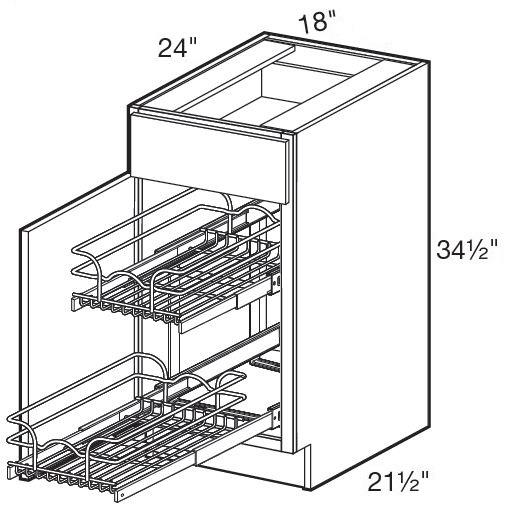

Specs General SpecsBase CabinetSingle Door/Single DrawerWidth - 18 inchesDepth - 24 inchesHeight ...

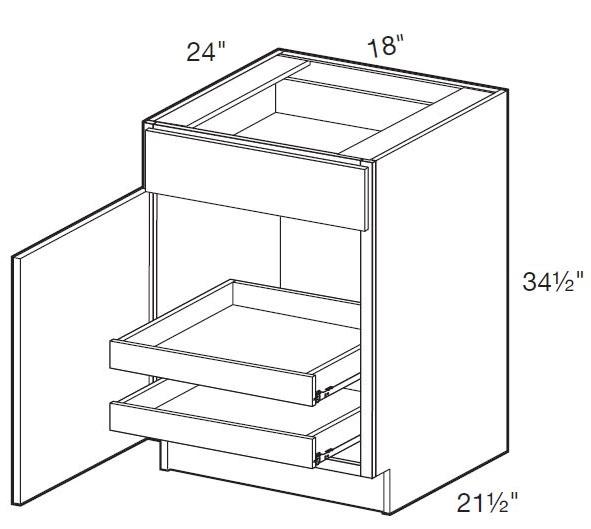

Specs General SpecsBase CabinetHinges On LeftSingle Door/ Single Drawer - 2 Rollout TraysWidth - ...
Specs General SpecsBase CabinetSingle Door/Single DrawerWidth - 18 inchesDepth - 24 inchesHeight ...

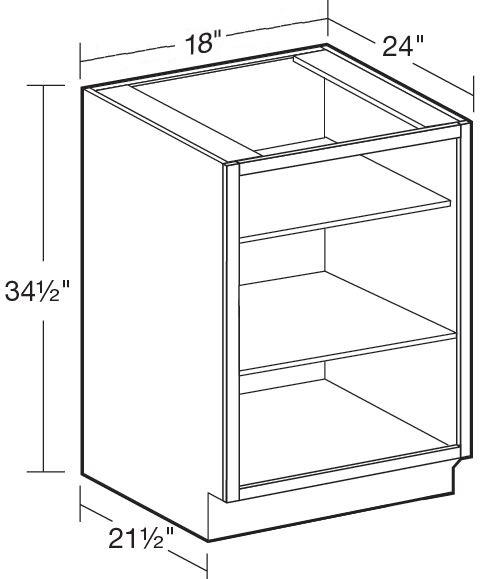

Specs General SpecsBase CabinetInterior Finished To Match FrameNo DoorWidth - 18 inchesDepth - 24...

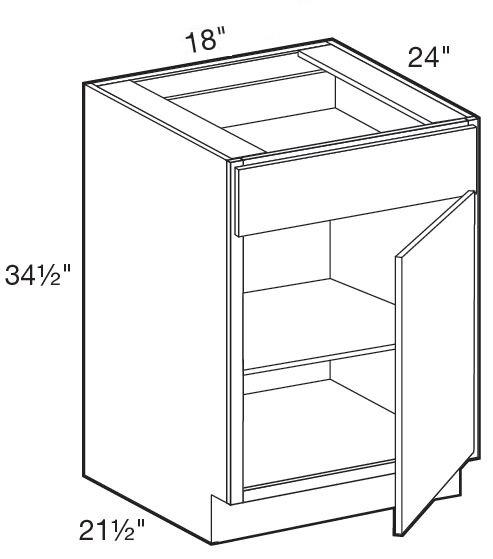

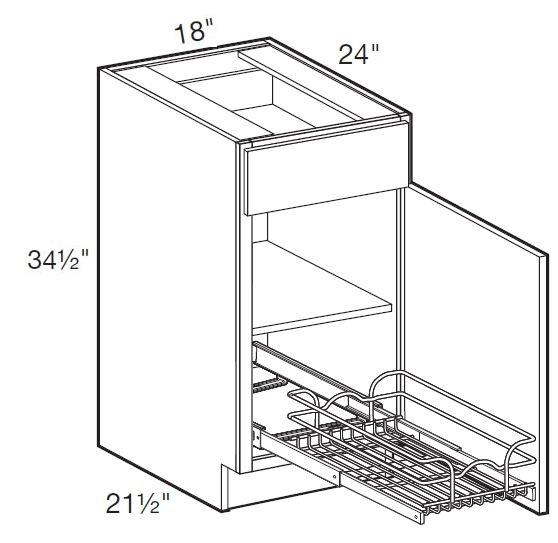

Specs General SpecsBase Cabinet Hinges On RightSingle Door/Single DrawerWidth - 18 inchesDepth - ...

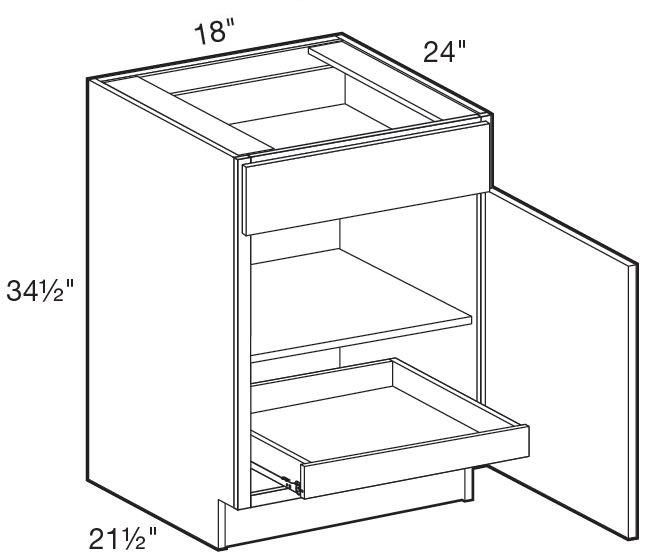

Specs General SpecsBase Cabinet Hinges On RightSingle Door/Single Drawer - 1 Rollout TrayWidth - ...
Specs General SpecsBase CabinetSingle Door/Single DrawerWidth - 18 inchesDepth - 24 inchesHeight ...

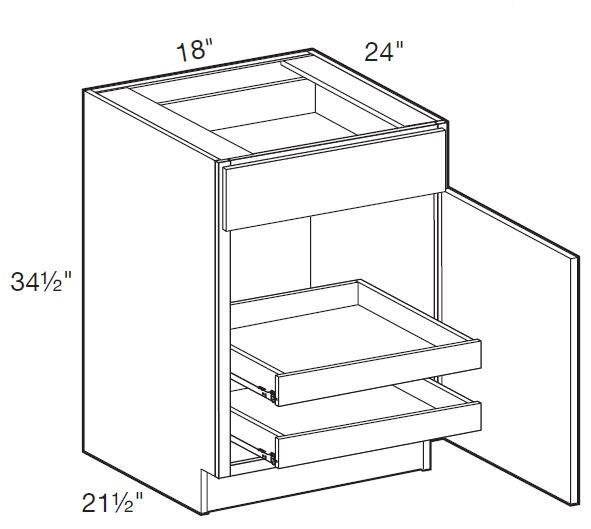

Specs General SpecsBase CabinetHinges On RightSingle Door/Single Drawer - 2 Rollout TraysWidth - ...
Specs General SpecsBase CabinetSingle Door/Single DrawerWidth - 18 inchesDepth - 24 inchesHeight ...

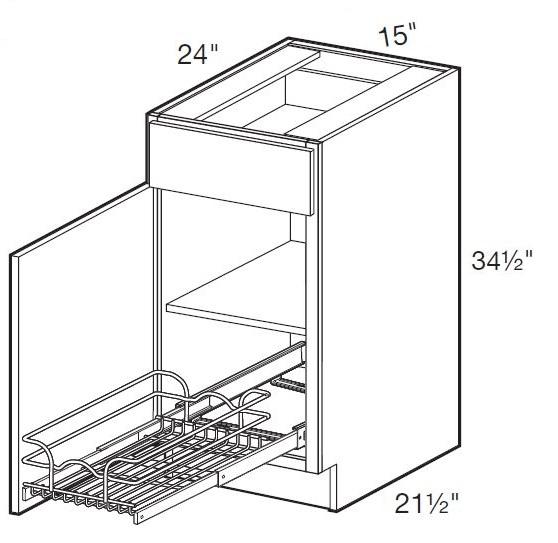

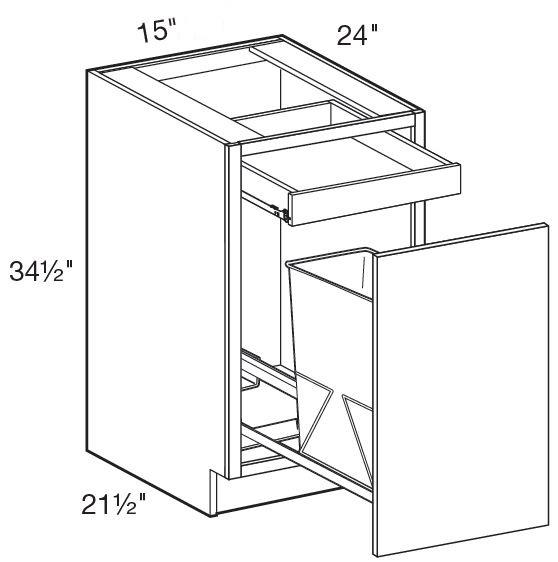

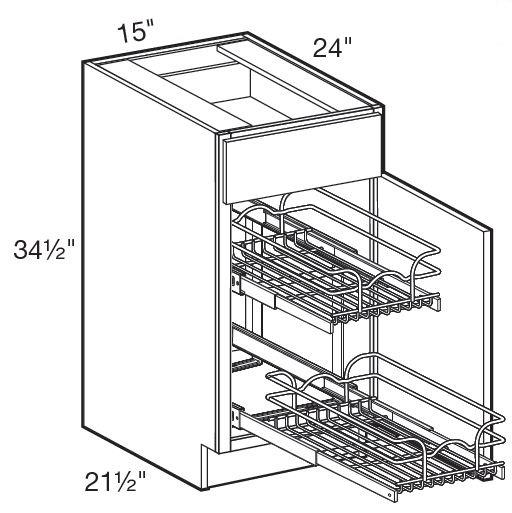

Specs General SpecsBase CabinetSingle Pullout Door/Single DrawerWidth - 15 inchesDepth - 24 inche...

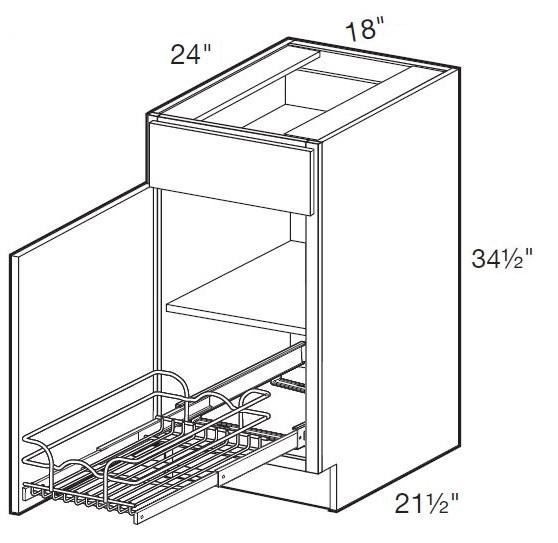

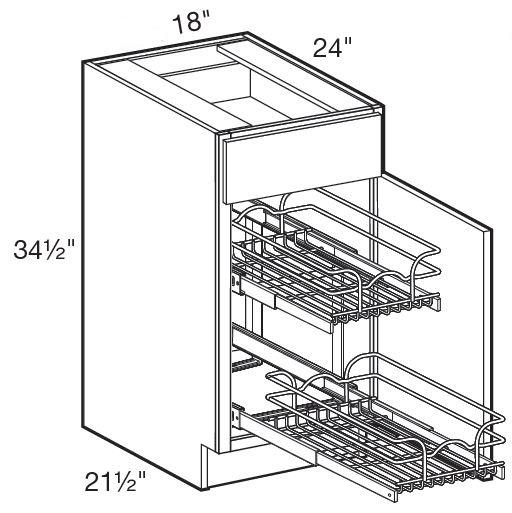

Specs General SpecsBase CabinetSingle Pullout Door/Single DrawerWidth - 18 inchesDepth - 24 inche...
Specs General SpecsBase CabinetSingle Pullout Door/Single DrawerWidth - 15 inchesDepth - 24 inche...
Specs General SpecsBase CabinetSingle Pullout Door/Single DrawerWidth - 18 inchesDepth - 24 inche...
Specs General SpecsBase CabinetHinges On LeftSingle DoorWidth - 21 inchesDepth - 24 inchesHeight ...
