Our factory built Woodline Series cabinets are made in America and come with the following advantages, regardless of door style:
To see our full selection of Woodline Series door styles, click here - Woodline Series
![]() |
![]() |
![]() |
1. INTERIOR |
Natural birch vinyl laminate provides a durable, wipe clean finish. Prepped for glass (PFG) and No Door (ND) cabinets have matching interiors standard. |
2. FACE FRAME |
1 1⁄2” wide x 3/4" thick solid hardwood pocket screwed. |
3. END PANELS |
1/2" thick CARB2 plywood, exterior vinyl laminate is color matched to the face frame. |
4. FLOOR & CEILING |
1/2" thick CARB2 plywood, both sides captured by end panels. |
5. BACK PANELS |
1/2" thick CARB2 plywood with natural birch vinyl laminate interior and raw exterior. The ‘clipped’ back panels on Wall Angle and Easy Reach Corner cabinets will be 1/4” plywood. |
6. I-BEAM SUPPORTS |
1/2" thick CARB2 plywood, full depth braces provide stability and support for countertop attachment. |
7. ADJUSTABLE SHELVES |
3/4" thick CARB2 plywood finished with natural birch vinyl laminate and matching edgebanding. Base and wall adjustable shelves are full depth. |
8. SHELF SUPPORTS |
Clear, high strength plastic with locking top tab to prevent shelf tip. Provides easy shelf adjustment. |
9. DOORS |
3/4" thick x 3" wide MDF framed door/drawer fronts with MDF recessed center panels |
10. HINGES |
Fully concealed 110° opening Soft Close hinges with 6-way adjustment for ease of alignment. |
11. RUNNERS/GLIDES |
Drawers feature smooth gliding, full extension, |
12. DRAWERS & ROLL-OUT TRAYS |
5/8" thick finger jointed hardwood four sided dovetail box construction, finished with a clear top coat and a 1/4" thick captured plywood floor. |
13. DRAWER FRONTS |
3/4" thick x 3" wide MDF framed door/drawer fronts with MDF recessed center panels For standard kitchen and vanity cabinets, the top drawer front is 8" high & bottom two drawer fronts are 10 1/2" high |
14. INTEGRAL TOE KICK |
1/2" thick plywood secured between end panels. Provides solid backing for installation of Matching Toe Kick (MTK8) or other materials such as ceramic, vinyl, etc. |
Specs General SpecsSample DoorLength - 13 inchesWide - 13 inchesThickness - 3/4 inch
Specs General SpecsWall CabinetBridge CabinetDouble DoorsWidth - 36 inchesDepth - 12 inchesHeight...
Specs General SpecsBase CabinetDouble Door/Single Drawer - 2 Rollout TraysWidth - 24 inchesDepth ...
Specs General SpecsWall CabinetInterior Finished To Match FrameNo DoorWidth - 36 inchesDepth - 12...
Specs General SpecsWall CabinetDouble Door Prepped For Glass Width - 36 inchesDepth - 12 inchesHe...
Specs General SpecsWall CabinetBridge CabinetDouble DoorsWidth - 36 inchesDepth - 12 inchesHeight...

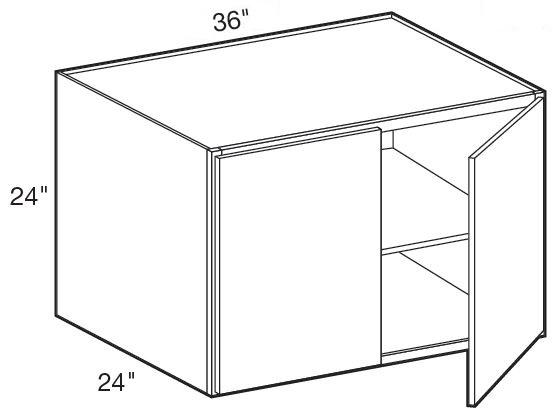

Specs General SpecsWall Cabinet24" Deep Bridge CabinetDouble DoorsWidth - 36 inchesDepth - 24 inc...

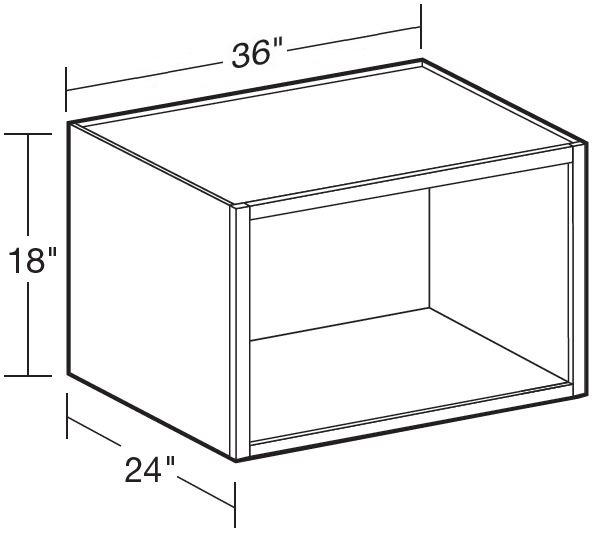

Specs General SpecsWall CabinetInterior Finished To Match FrameNo DoorWidth - 36 inchesDepth - 24...

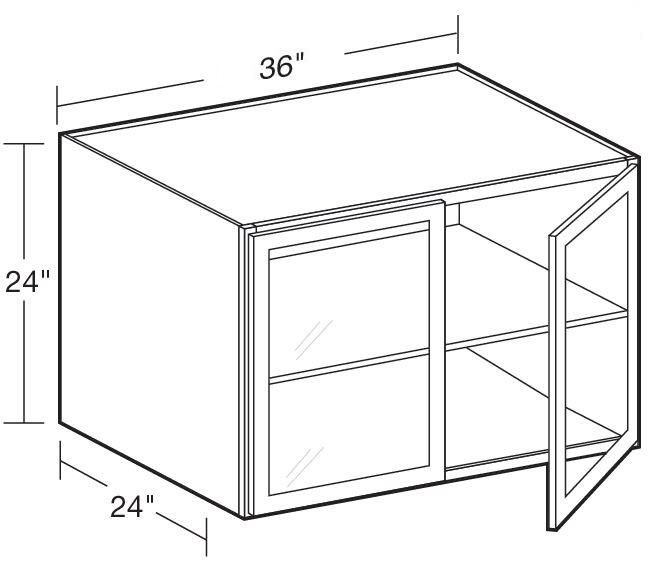

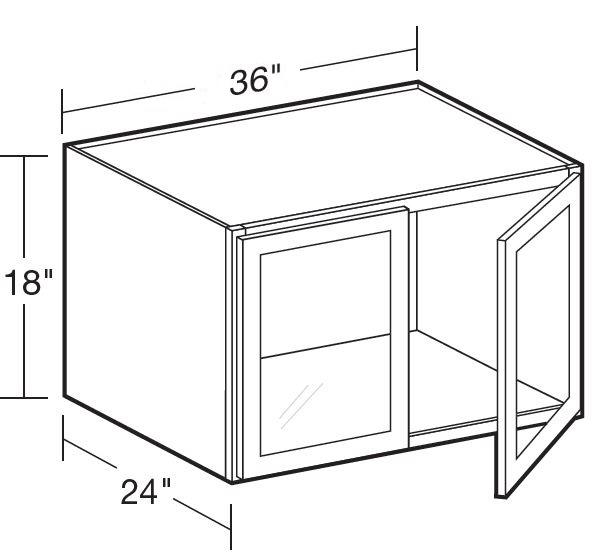

Specs General SpecsWall CabinetDouble Door Prepped For Glass Width - 36 inchesDepth - 24 inchesHe...
Specs General SpecsWall Cabinet24" Deep Bridge CabinetDouble DoorsWidth - 36 inchesDepth - 24 inc...

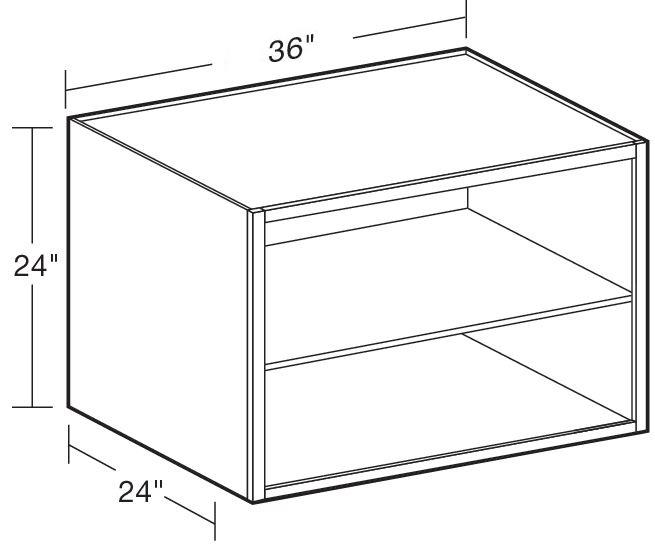

Specs General SpecsWall CabinetInterior Finished To Match FrameNo DoorWidth - 36 inchesDepth - 24...
Specs General SpecsWall CabinetDouble Door Prepped For Glass Width - 36 inchesDepth - 24 inchesHe...
Specs General SpecsWall Cabinet24" Deep Bridge CabinetDouble DoorsWidth - 36 inchesDepth - 24 inc...
Specs General SpecsWall CabinetInterior Finished To Match FrameNo DoorWidth - 36 inchesDepth - 24...
Specs General SpecsWall CabinetDouble Door Prepped For Glass Width - 36 inchesDepth - 24 inchesHe...
Specs General SpecsWall Cabinet24" Deep Bridge CabinetDouble DoorsWidth - 36 inchesDepth - 24 inc...
Specs General SpecsWall CabinetInterior Finished To Match FrameNo DoorWidth - 36 inchesDepth - 24...
Specs General SpecsWall CabinetDouble Door Prepped For Glass Width - 36 inchesDepth - 24 inchesHe...

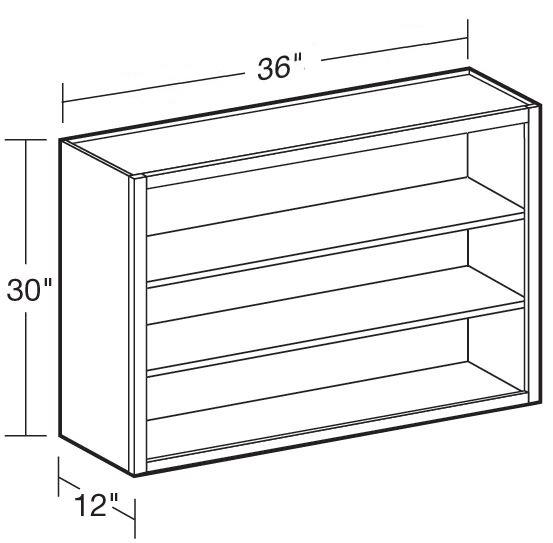

Specs General SpecsWall CabinetInterior Finished To Match FrameNo DoorWidth - 36 inchesDepth - 12...

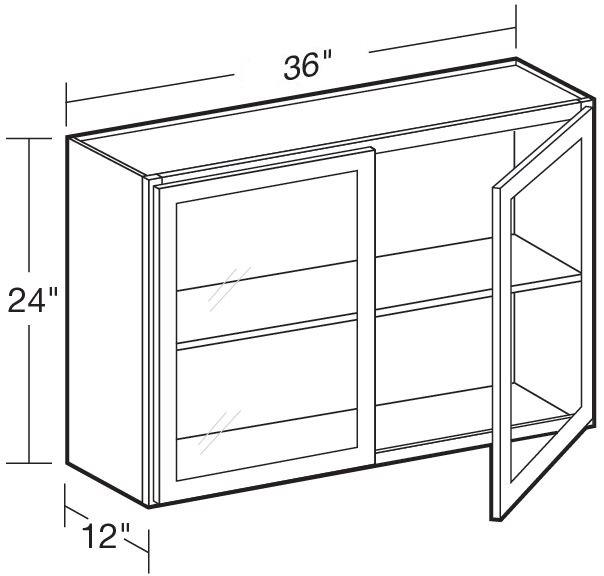

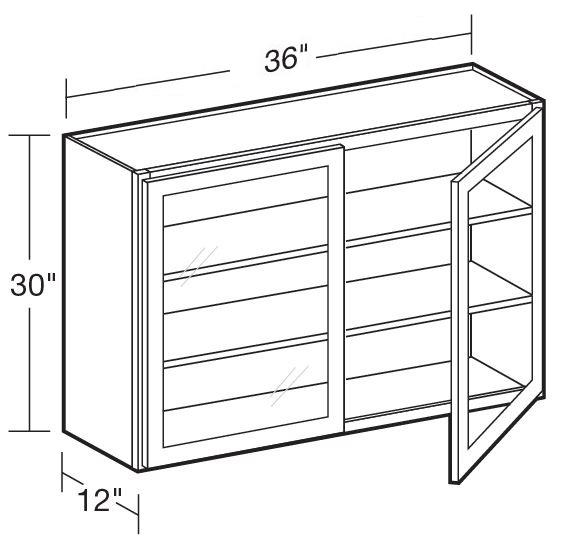

Specs General SpecsWall CabinetDouble Door Prepped For Glass Width - 36 inchesDepth - 12 inchesHe...

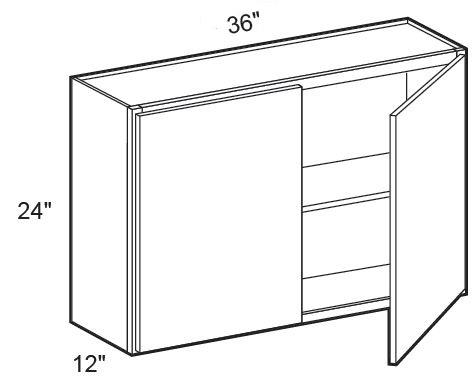

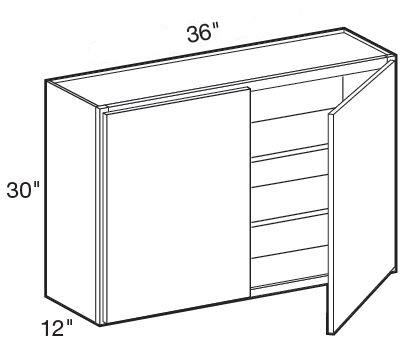

Specs General SpecsWall CabinetDouble DoorsWidth - 36 inchesDepth - 12 inchesHeight - 30 inchesAd...
Specs General SpecsWall CabinetInterior Finished To Match FrameNo DoorWidth - 36 inchesDepth - 12...
Specs General SpecsWall CabinetDouble Door Prepped For Glass Width - 36 inchesDepth - 12 inchesHe...

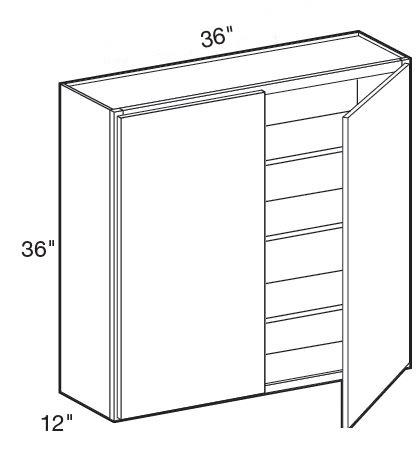

Specs General SpecsWall CabinetDouble DoorsWidth - 36 inchesDepth - 12 inchesHeight - 36 inchesAd...
Specs General SpecsWall CabinetInterior Finished To Match FrameNo DoorWidth - 36 inchesDepth - 12...

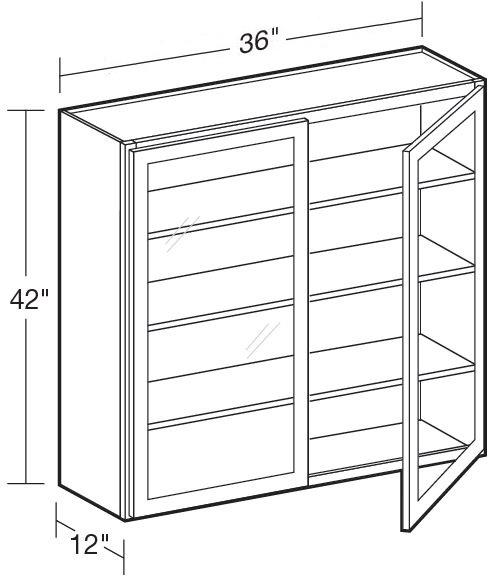

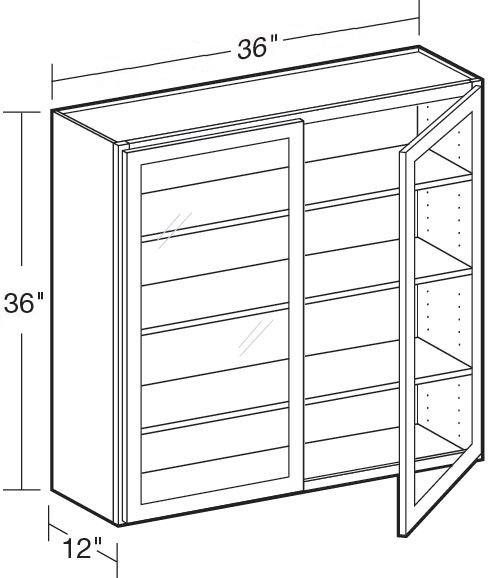

Specs General SpecsWall CabinetDouble Door Prepped For Glass Width - 36 inchesDepth - 12 inchesHe...
Specs General SpecsWall CabinetDouble DoorsWidth - 36 inchesDepth - 12 inchesHeight - 42 inchesAd...

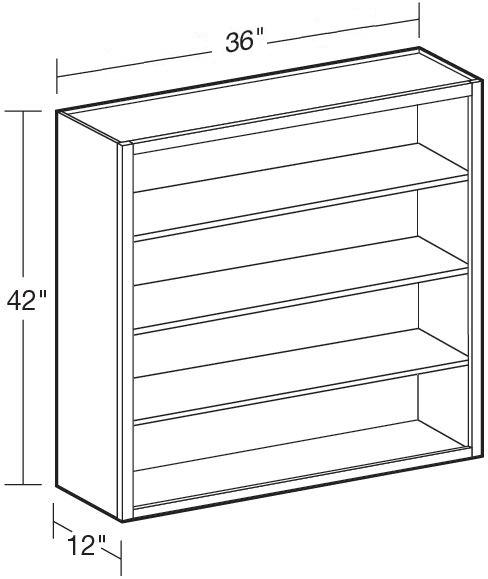

Specs General SpecsWall CabinetInterior Finished To Match FrameNo DoorWidth - 36 inchesDepth - 12...
Specs General SpecsWall CabinetDouble Door Prepped For Glass Width - 36 inchesDepth - 12 inchesHe...

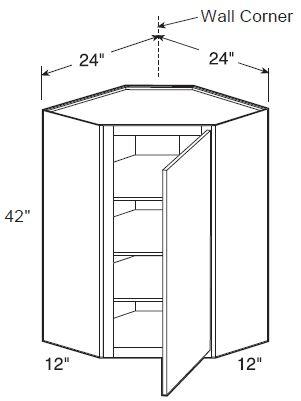

Specs General SpecsWall CabinetHinges On LeftSingle DoorWidth - 24 inchesDepth - 12 inchesHeight ...
Specs General SpecsWall CabinetInterior Finished To Match FrameNo DoorWidth - 24 inchesDepth - 12...
Specs General SpecsWall CabinetHinges On LeftSingle Door Prepped For GlassWidth - 24 inchesDepth ...
Specs General SpecsWall CabinetHinges On RightSingle Door Prepped For GlassWidth - 24 inchesDepth...
Specs General SpecsWall CabinetHinges On RightSingle DoorWidth - 24 inchesDepth - 12 inchesHeight...
Specs General SpecsWall CabinetHinges On LeftSingle DoorWidth - 24 inchesDepth - 12 inchesHeight ...
Specs General SpecsWall CabinetInterior Finished To Match FrameNo DoorWidth - 24 inchesDepth - 12...
Specs General SpecsWall CabinetHinges On LeftSingle Door Prepped For GlassWidth - 24 inchesDepth ...
Specs General SpecsWall CabinetHinges On RightSingle Door Prepped For GlassWidth - 24 inchesDepth...
Specs General SpecsWall CabinetHinges On RightSingle DoorWidth - 24 inchesDepth - 12 inchesHeight...
Specs General SpecsWall CabinetHinges On LeftSingle DoorWidth - 24 inchesDepth - 12 inchesHeight ...
Specs General SpecsWall CabinetInterior Finished To Match FrameNo DoorWidth - 24 inchesDepth - 12...
Specs General SpecsWall CabinetHinges On LeftSingle Door Prepped For GlassWidth - 24 inchesDepth ...
Specs General SpecsWall CabinetHinges On RightSingle Door Prepped For GlassWidth - 24 inchesDepth...
Specs General SpecsWall CabinetHinges On RightSingle DoorWidth - 24 inchesDepth - 12 inchesHeight...

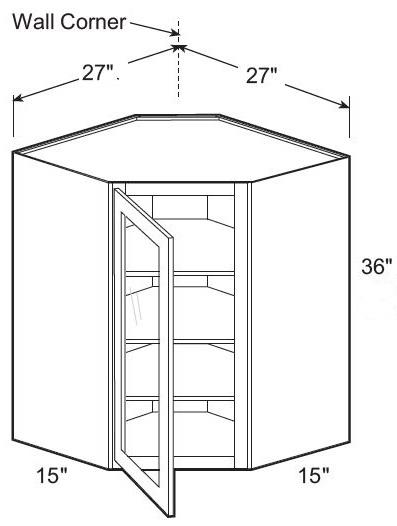

Specs General SpecsWall CabinetHinges On LeftSingle DoorWidth - 27 inchesDepth - 15 inchesHeight ...

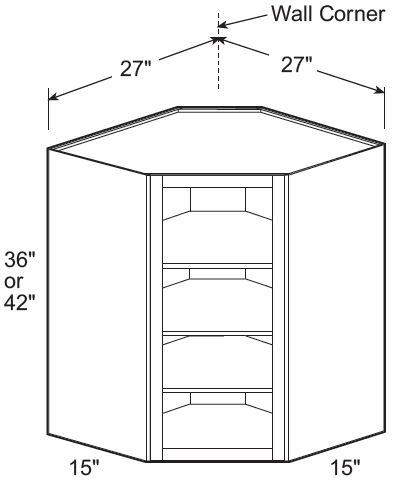

Specs General SpecsWall CabinetInterior Finished To Match FrameNo DoorWidth - 27 inchesDepth - 15...
Specs General SpecsWall CabinetHinges On LeftSingle Door Prepped For GlassWidth - 27 inchesDepth ...
Specs General SpecsWall CabinetHinges On RightSingle Door Prepped For GlassWidth - 27 inchesDepth...
