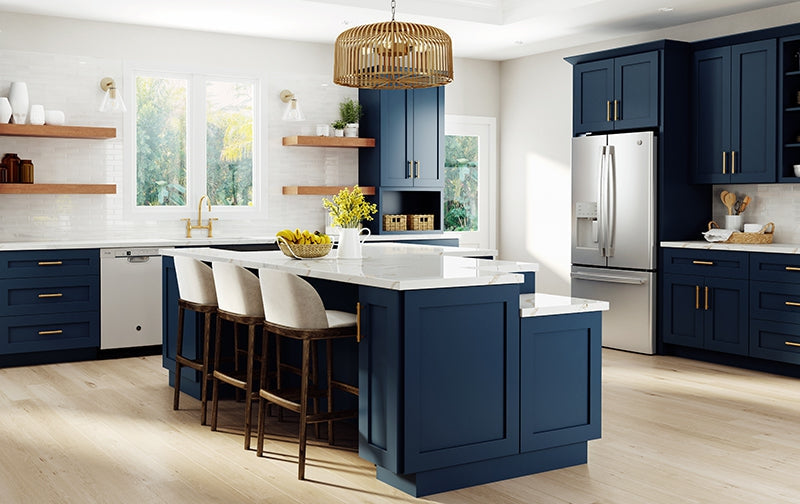

Woodline Series - Nassau Mythic Blue

  • Factory Built and Made in America
  • Check for lead time updates here
  • Many orders will qualify for free shipping - Click here for more info - Woodline Series Free Shipping Map
  • Standard with CARB II compliant all plywood box
  • Blue paint on 3/4" thick x 3” wide MDF Shaker framed doors/drawers with 5/8” thick solid MDF center panels
  • Full-overlay design
  • Dovetail, full-extension, soft-close drawers
  • Soft-close hinges standard

Our factory built Woodline Series cabinets are made in America and come with the following advantages, regardless of door style:

  • Quick Ship - Orders typically ship in 2-3 weeks and are typically delivered within 4 weeks - Fully assembled and ready to install
    • Check for lead time updates here
  • Free Shipping - Many orders will qualify for free shipping.  See the map below to find your delivery state and the minimum order amount required to receive free shipping.
  • Limited Lifetime Warranty - All Woodline Series cabinets come with a Limited Lifetime Warranty so you can purchase with confidence.  You can view the warranty specifics here - Woodline Series Warranty
  • Hundred's of SKU's available to accommodate the vast majority of kitchen designs and preferences.
  • All plywood boxes - STANDARD
  • Dovetail, full-extension, soft-close drawers - STANDARD
  • Soft-close hinges - STANDARD

To see our full selection of Woodline Series door styles, click here - Woodline Series

Free Shipping is offered with the Woodline Series, depending on the delivery state and order value.  See the map below to find your delivery state and the minimum order amount required to qualify for free shipping:

Woodline Series - Free Shipping Promo Map


1. INTERIOR

    Natural birch vinyl laminate provides a durable, wipe clean finish.

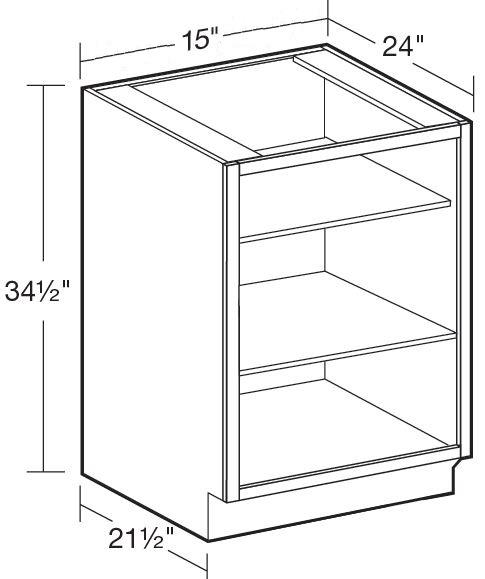

    Prepped for glass (PFG) and No Door (ND) cabinets have matching interiors standard.

    2.  FACE FRAME

      1 1⁄2” wide x 3/4" thick solid hardwood pocket screwed.

      3.  END PANELS

        1/2" thick CARB2 plywood, exterior vinyl laminate is color matched to the face frame.

        4.  FLOOR & CEILING

          1/2" thick CARB2 plywood, both sides captured by end panels.

          5.  BACK PANELS

            1/2" thick CARB2 plywood with natural birch vinyl laminate interior and raw exterior. The ‘clipped’ back panels on Wall Angle and Easy Reach Corner cabinets will be 1/4” plywood.

            6.  I-BEAM SUPPORTS

            1/2" thick CARB2 plywood, full depth braces provide stability and support for countertop attachment.

            7.  ADJUSTABLE SHELVES

              3/4" thick CARB2 plywood finished with natural birch vinyl laminate and matching edgebanding. Base and wall adjustable shelves are full depth.

              8.  SHELF SUPPORTS

                Clear, high strength plastic with locking top tab to prevent shelf tip. Provides easy shelf adjustment.

                9.  DOORS

                  Stylish, full-overlay painted MDF.

                  10.  HINGES

                    Fully concealed 110° opening Soft Close hinges with 6-way adjustment for ease of alignment.

                    11.  RUNNERS/GLIDES

                      Drawers feature smooth gliding, full extension,
                      ball bearing runners with Soft Closing shocks that engage when drawer is 1” from closed. Interior roll out trays have epoxy coated side mount runners. Both are rated for 100lb static and 75lb dynamic loads.

                      12.  DRAWERS & ROLL-OUT TRAYS

                      5/8" thick finger jointed hardwood four sided dovetail box construction, finished with a clear top coat and a 1/4" thick captured plywood floor.

                      13.  DRAWER FRONTS

                      Stylish, full-overlay painted MDF.
                      For standard kitchen and vanity cabinets, the top drawer front is 8" high & bottom two drawer fronts are 10 1/2" high

                      14.  INTEGRAL TOE KICK

                      1/2" thick plywood secured between end panels. Provides solid backing for installation of Matching Toe Kick (MTK8) or other materials such as ceramic, vinyl, etc.





                      $349.07 $150.10
                      $99.04 $42.59
                      $125.07 $53.78
                      $482.19 $207.34
                      $482.19 $207.34
                      $650.19 $279.58
                      $571.15 $245.59
                      $571.15 $245.59
                      $605.22 $260.24
                      $770.22 $331.19
                      Load More Products
