Our factory built Woodline Series cabinets are made in America and come with the following advantages, regardless of door style:
To see our full selection of Woodline Series door styles, click here - Woodline Series
Free Shipping is offered with the Woodline Series, depending on the delivery state and order value. See the map below to find your delivery state and the minimum order amount required to qualify for free shipping:
![]() |
![]() |
![]() |
1. INTERIOR |
Natural birch vinyl laminate provides a durable, wipe clean finish. Prepped for glass (PFG) and No Door (ND) cabinets have matching interiors standard. |
2. FACE FRAME |
1 1⁄2” wide x 3/4" thick solid hardwood pocket screwed. |
3. END PANELS |
1/2" thick CARB2 plywood, exterior vinyl laminate is color matched to the face frame. |
4. FLOOR & CEILING |
1/2" thick CARB2 plywood, both sides captured by end panels. |
5. BACK PANELS |
1/2" thick CARB2 plywood with natural birch vinyl laminate interior and raw exterior. The ‘clipped’ back panels on Wall Angle and Easy Reach Corner cabinets will be 1/4” plywood. |
6. I-BEAM SUPPORTS |
1/2" thick CARB2 plywood, full depth braces provide stability and support for countertop attachment. |
7. ADJUSTABLE SHELVES |
3/4" thick CARB2 plywood finished with natural birch vinyl laminate and matching edgebanding. Base and wall adjustable shelves are full depth. |
8. SHELF SUPPORTS |
Clear, high strength plastic with locking top tab to prevent shelf tip. Provides easy shelf adjustment. |
9. DOORS |
Stylish, full-overlay 3/4" thick vinyl clad MDF recessed panel doors with flat melamine back |
10. HINGES |
Fully concealed 110° opening Soft Close hinges with 6-way adjustment for ease of alignment. |
11. RUNNERS/GLIDES |
Drawers feature smooth gliding, full extension, |
12. DRAWERS & ROLL-OUT TRAYS |
5/8" thick finger jointed hardwood four sided dovetail box construction, finished with a clear top coat and a 1/4" thick captured plywood floor. |
13. DRAWER FRONTS |
Stylish, full-overlay 3/4" thick vinyl clad MDF recessed panel drawer fronts with flat melamine back. For standard kitchen and vanity cabinets, the top drawer front is 8" high & bottom two drawer fronts are 10 1/2" high |
14. INTEGRAL TOE KICK |
1/2" thick plywood secured between end panels. Provides solid backing for installation of Matching Toe Kick (MTK8) or other materials such as ceramic, vinyl, etc. |
Specs General SpecsBase CabinetHinges On LeftSingle DoorWidth - 9 inchesDepth - 24 inchesHeight -...
Specs General SpecsBase CabinetHinges On RightSingle DoorWidth - 9 inchesDepth - 24 inchesHeight ...
Specs General SpecsBase CabinetInterior Finished To Match FrameNo DoorWidth - 9 inchesDepth - 24 ...

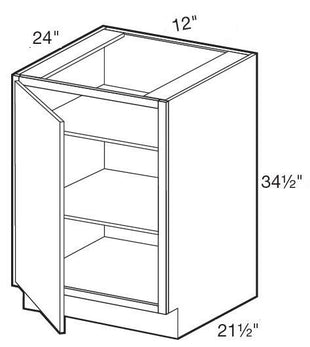

Specs General SpecsBase CabinetHinges On LeftSingle DoorWidth - 12 inchesDepth - 24 inchesHeight ...

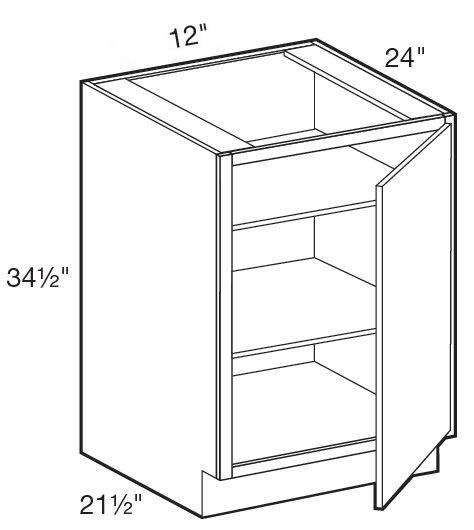

Specs General SpecsBase CabinetHinges On RightSingle DoorWidth - 12 inchesDepth - 24 inchesHeight...

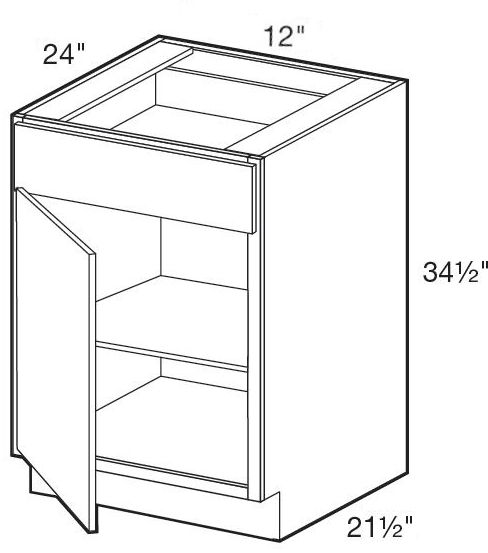

Specs General SpecsBase CabinetHinges On LeftSingle Door/Single DrawerWidth - 12 inchesDepth - 24...

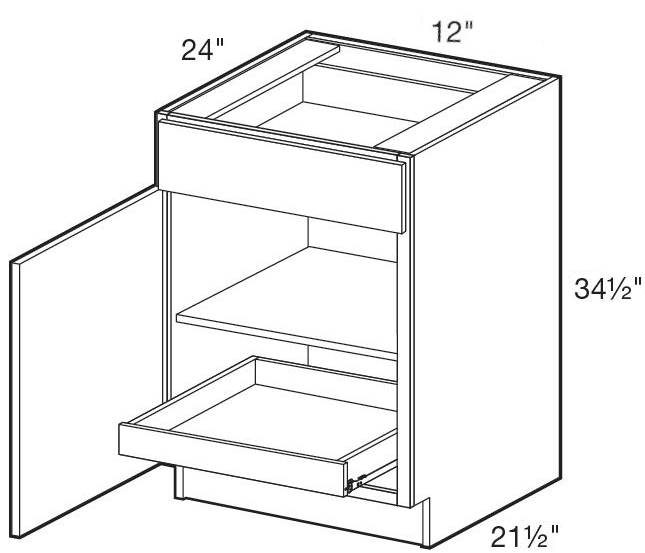

Specs General SpecsBase CabinetHinges On LeftSingle Door/Single Drawer - 1 Rollout TrayWidth - 12...
Specs General SpecsBase CabinetHinges On LeftSingle Door/ Single Drawer - 2 Rollout TraysWidth - ...

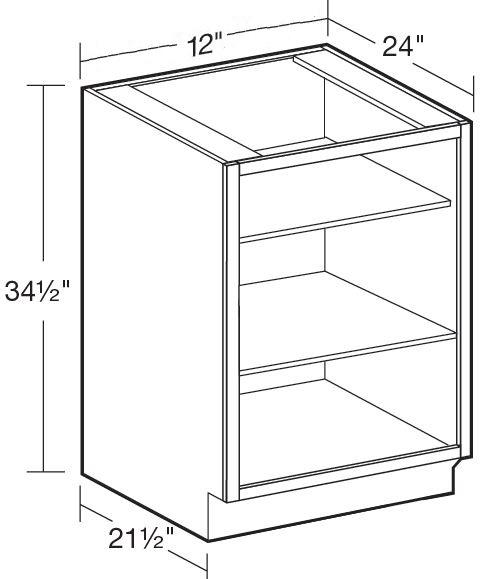

Specs General SpecsBase CabinetInterior Finished To Match FrameNo DoorWidth - 12 inchesDepth - 24...

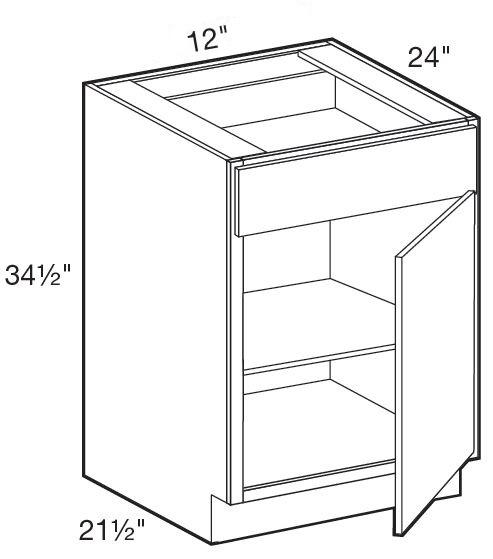

Specs General SpecsBase Cabinet Hinges On RightSingle Door/Single DrawerWidth - 12 inchesDepth - ...
Specs General SpecsBase Cabinet Hinges On RightSingle Door/Single Drawer - 1 Rollout TrayWidth - ...

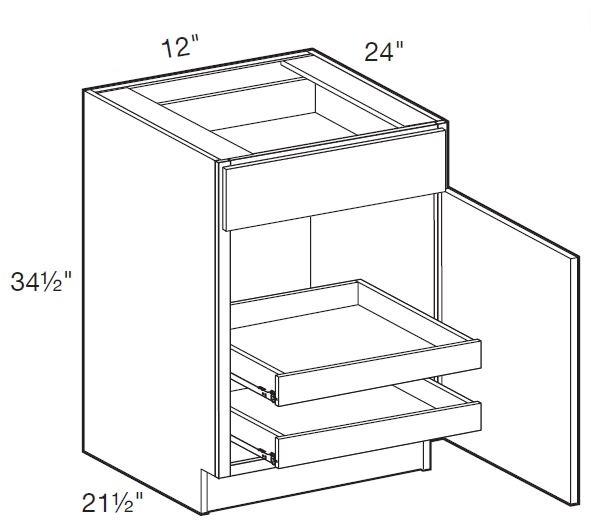

Specs General SpecsBase CabinetHinges On RightSingle Door/Single Drawer - 2 Rollout TraysWidth - ...
Specs General SpecsBase CabinetHinges On LeftSingle DoorWidth - 15 inchesDepth - 24 inchesHeight ...
Specs General SpecsBase CabinetHinges On RightSingle DoorWidth - 15 inchesDepth - 24 inchesHeight...
Specs General SpecsBase CabinetHinges On LeftSingle Door/Single DrawerWidth - 15 inchesDepth - 24...

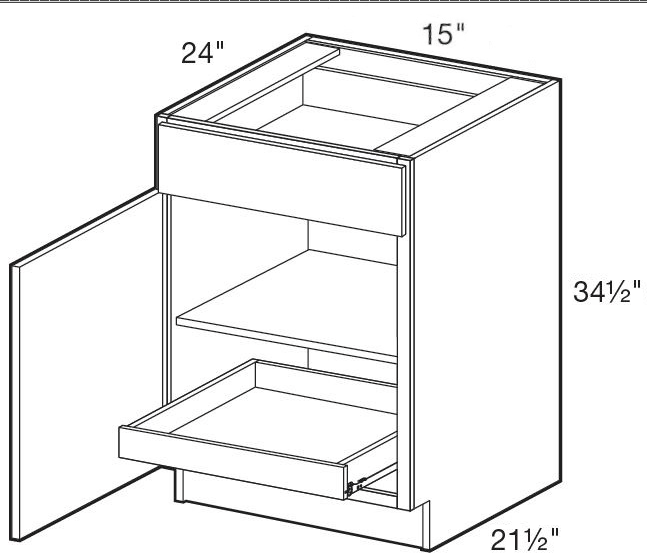

Specs General SpecsBase CabinetHinges On LeftSingle Door/Single Drawer - 1 Rollout TrayWidth - 15...
Specs General Specs Base Cabinet Single Door/Single Drawer Width - 15 inches Depth - 24 inches He...

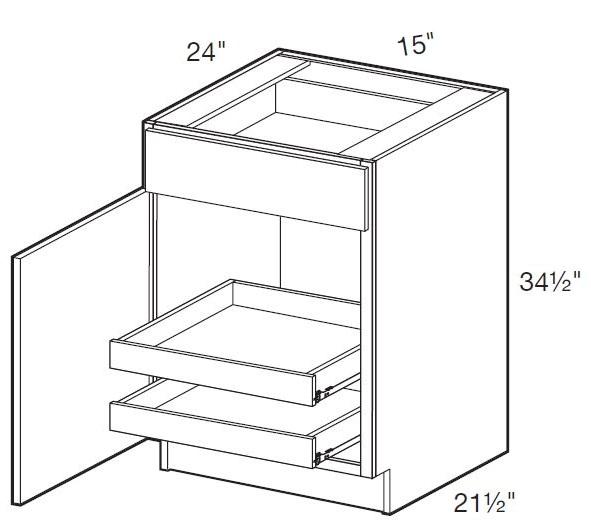

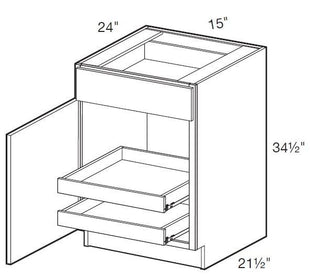

Specs General SpecsBase CabinetHinges On LeftSingle Door/ Single Drawer - 2 Rollout TraysWidth - ...

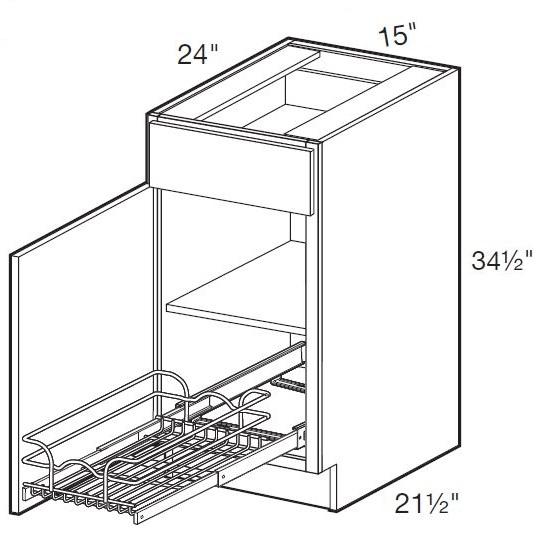

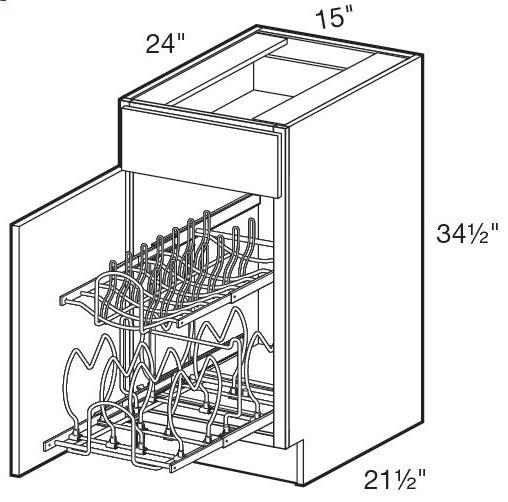

Specs General SpecsBase CabinetSingle Door/Single DrawerWidth - 15 inchesDepth - 24 inchesHeight ...

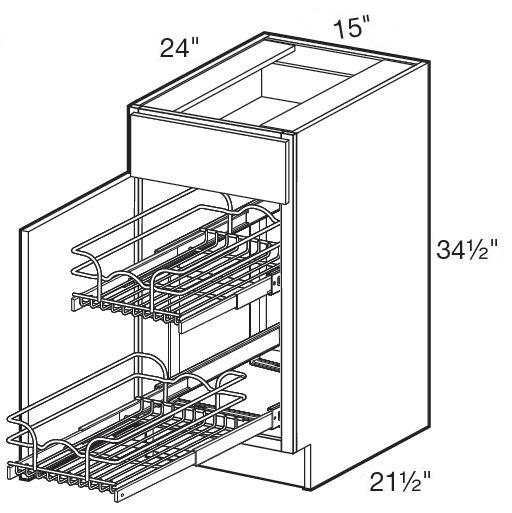

Specs General SpecsBase CabinetSingle Door/Single DrawerWidth - 15 inchesDepth - 24 inchesHeight ...

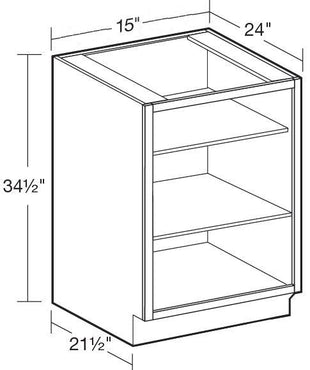

Specs General SpecsBase CabinetInterior Finished To Match FrameNo DoorWidth - 15 inchesDepth - 24...

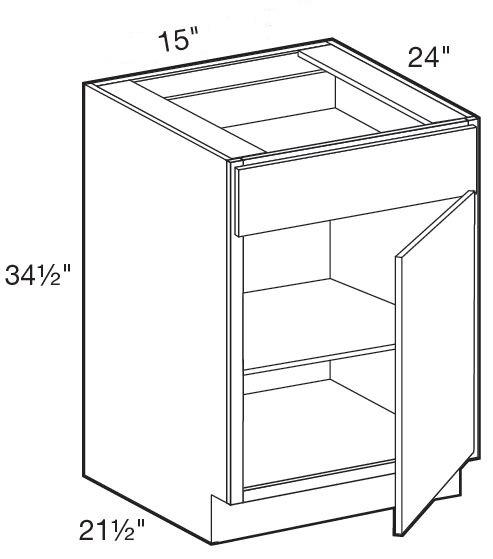

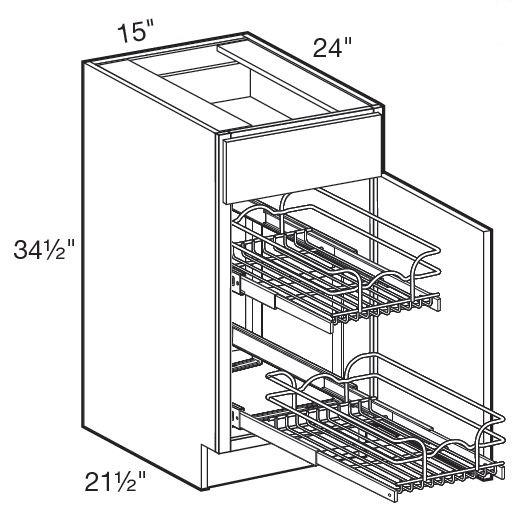

Specs General SpecsBase Cabinet Hinges On RightSingle Door/Single DrawerWidth - 15 inchesDepth - ...

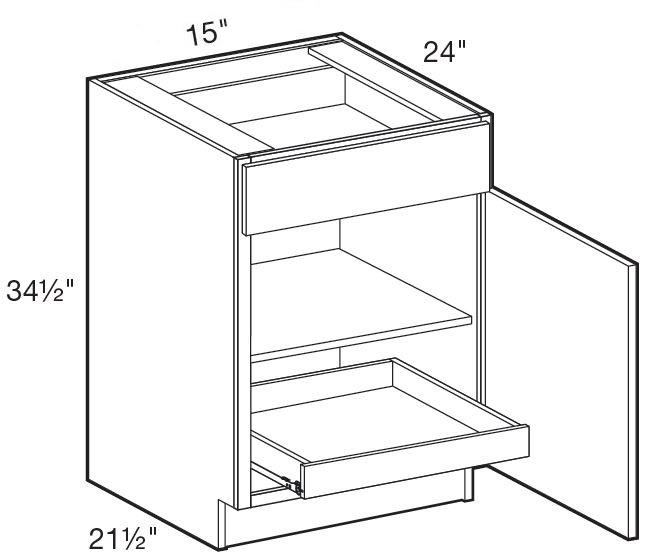

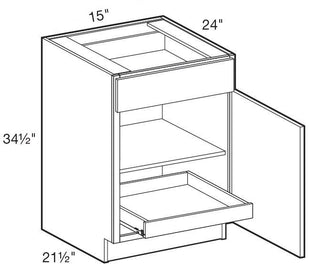

Specs General SpecsBase Cabinet Hinges On RightSingle Door/Single Drawer - 1 Rollout TrayWidth - ...
Specs General SpecsBase CabinetSingle Door/Single DrawerWidth - 15 inchesDepth - 24 inchesHeight ...
Specs General SpecsBase CabinetHinges On RightSingle Door/Single Drawer - 2 Rollout TraysWidth - ...

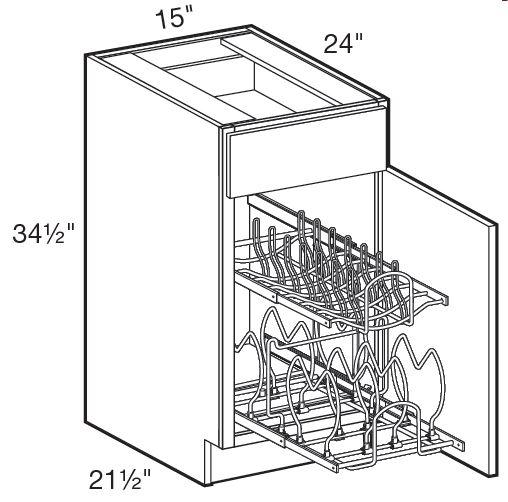

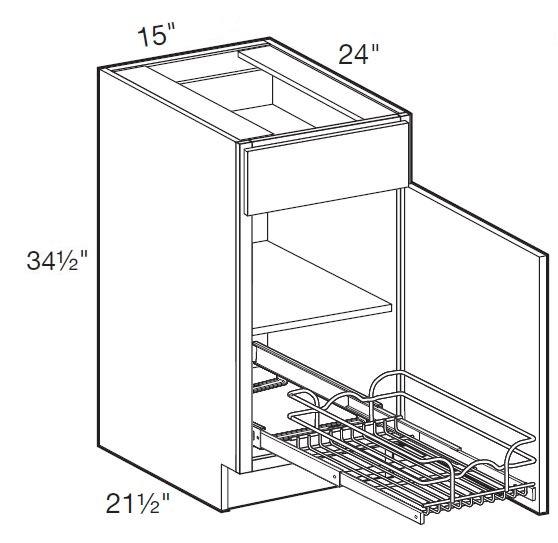

Specs General SpecsBase CabinetSingle Door/Single DrawerWidth - 15 inchesDepth - 24 inchesHeight ...
Specs General SpecsBase CabinetSingle Door/Single DrawerWidth - 15 inchesDepth - 24 inchesHeight ...

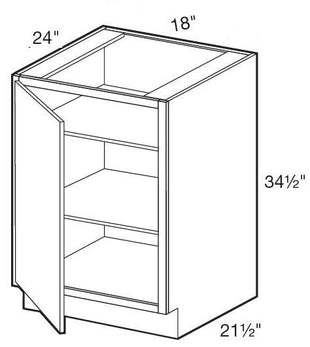

Specs General SpecsBase CabinetHinges On LeftSingle DoorWidth - 18 inchesDepth - 24 inchesHeight ...
Specs General SpecsBase CabinetHinges On RightSingle DoorWidth - 18 inchesDepth - 24 inchesHeight...

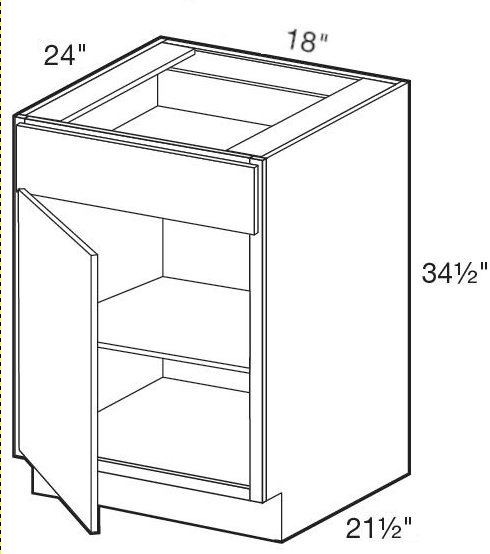

Specs General SpecsBase CabinetHinges On LeftSingle Door/Single DrawerWidth - 18 inchesDepth - 24...

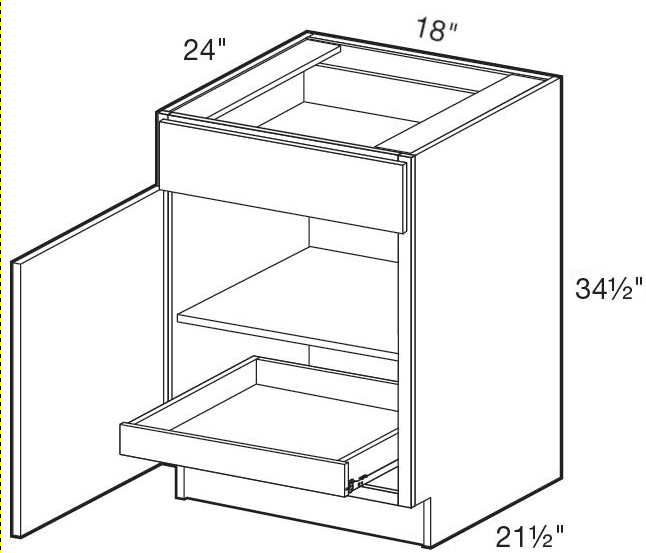

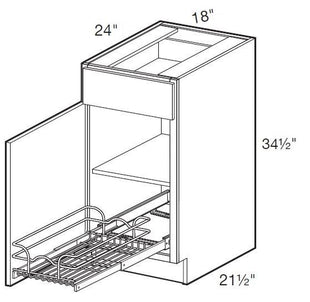

Specs General SpecsBase CabinetHinges On LeftSingle Door/Single Drawer - 1 Rollout TrayWidth - 18...

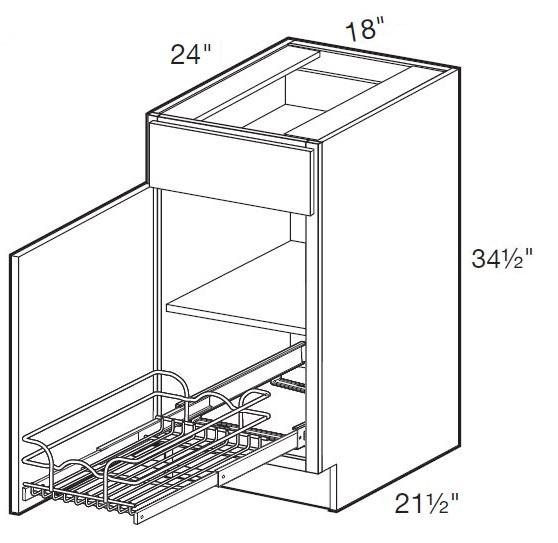

Specs General SpecsBase CabinetSingle Door/Single DrawerWidth - 18 inchesDepth - 24 inchesHeight ...

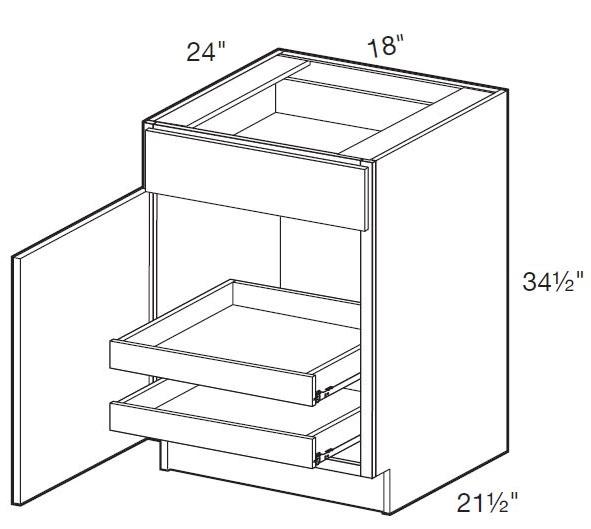

Specs General SpecsBase CabinetHinges On LeftSingle Door/ Single Drawer - 2 Rollout TraysWidth - ...
Specs General SpecsBase CabinetSingle Door/Single DrawerWidth - 18 inchesDepth - 24 inchesHeight ...
Specs General SpecsBase CabinetInterior Finished To Match FrameNo DoorWidth - 18 inchesDepth - 24...
Specs General SpecsBase Cabinet Hinges On RightSingle Door/Single DrawerWidth - 18 inchesDepth - ...
Specs General SpecsBase Cabinet Hinges On RightSingle Door/Single Drawer - 1 Rollout TrayWidth - ...

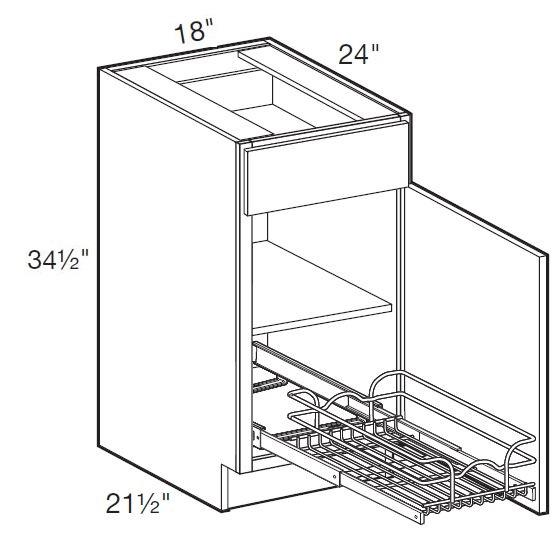

Specs General SpecsBase CabinetSingle Door/Single DrawerWidth - 18 inchesDepth - 24 inchesHeight ...

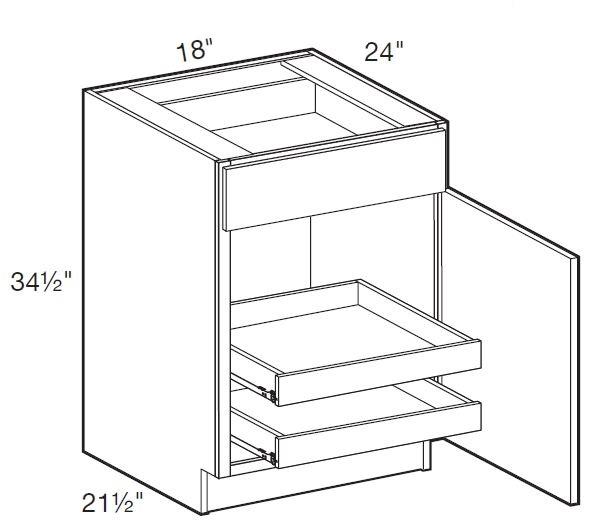

Specs General SpecsBase CabinetHinges On RightSingle Door/Single Drawer - 2 Rollout TraysWidth - ...

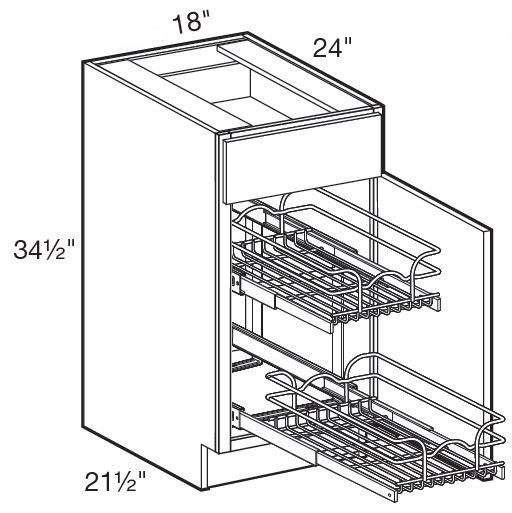

Specs General SpecsBase CabinetSingle Door/Single DrawerWidth - 18 inchesDepth - 24 inchesHeight ...

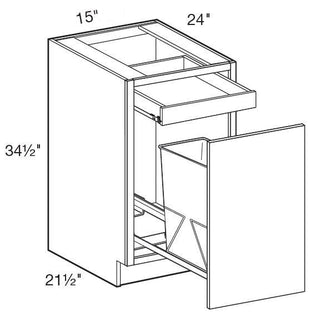

Specs General SpecsBase CabinetSingle Pullout Door/Single DrawerWidth - 15 inchesDepth - 24 inche...

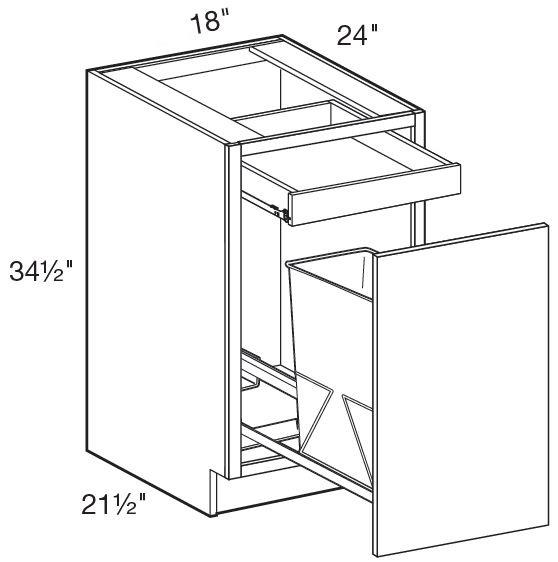

Specs General SpecsBase CabinetSingle Pullout Door/Single DrawerWidth - 18 inchesDepth - 24 inche...
Specs General SpecsBase CabinetSingle Pullout Door/Single DrawerWidth - 15 inchesDepth - 24 inche...
Specs General SpecsBase CabinetSingle Pullout Door/Single DrawerWidth - 18 inchesDepth - 24 inche...
Specs General SpecsBase CabinetHinges On LeftSingle DoorWidth - 21 inchesDepth - 24 inchesHeight ...

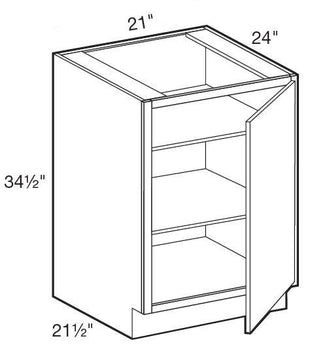

Specs General SpecsBase CabinetHinges On RightSingle DoorWidth - 21 inchesDepth - 24 inchesHeight...

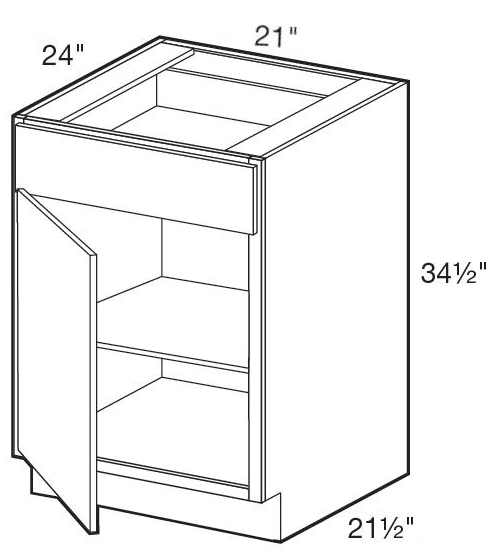

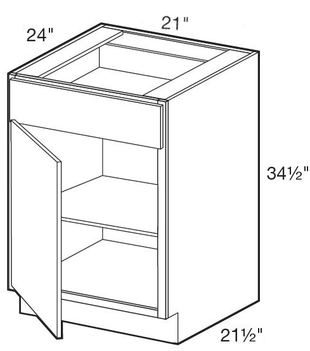

Specs General SpecsBase CabinetHinges On LeftSingle Door/Single DrawerWidth - 21 inchesDepth - 24...

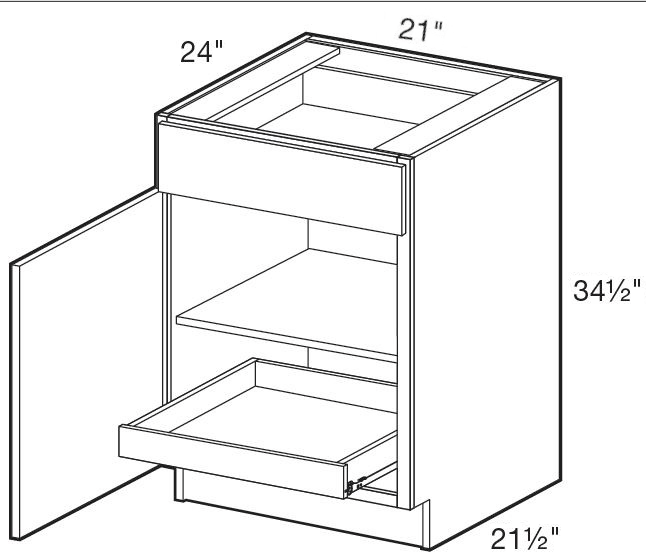

Specs General SpecsBase CabinetHinges On LeftSingle Door/Single Drawer - 1 Rollout TrayWidth - 21...
