JSI Cabinetry Designer Series


AB24 - Essex White - Angled Base End Cabinet

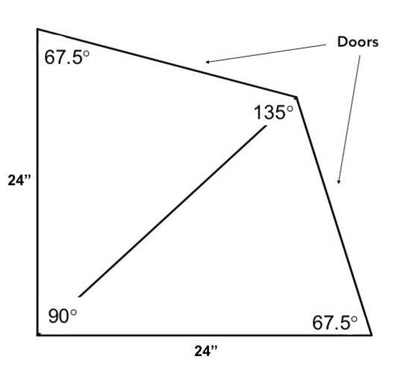

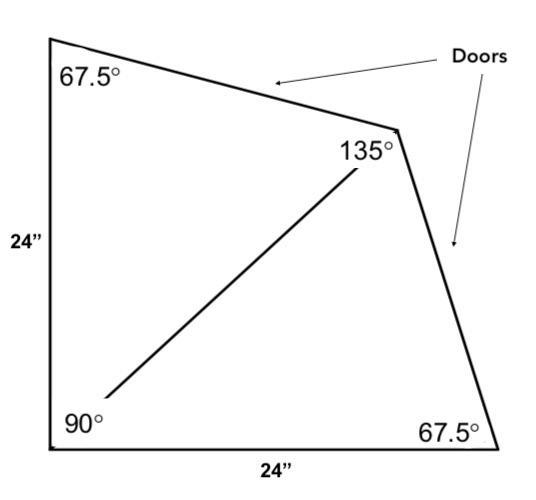

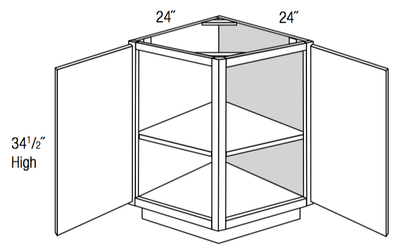

  • Width 24", height 34 1/2", depth 24"
  • Angled Base End Cabinet
  • Full height doors on two sides with no drawers.
  • Fixed full depth shelf - 3/4" thick
  • Ideal for an end run of base cabinets to transition back to the wall.’ǒ_
  • Can also be used when base cabinets are transition around an outside corner.

Designer Series Construction Specs

1.  Face Frames


    Solid North American Maple


    3/4 ̋ x 11/2 ̋ (Sturbridge, Dover, Essex, Trenton, Kingston, Yarmouth)

    3/4 ̋ x 19/16 ̋ Mortise & Tenon Construction (Georgetown and Wheaton)

    2.  End Panel

      1/2 ̋-thick Plywood

       - Finished to match on exterior

      3.  Top and Bottom (Walls)

        1/2 ̋-thick Plywood

        4.  Bottom (Bases)

          3/8 ̋-thick Plywood

          5.  Shelves

            Adjustable 3/4 ̋-thick Plywood, Edgebanded on front

            6.  Back

              1/2 ̋-thick Solid Plywood

              (Georgetown and Wheaton have 1/8 ̋-thick Plywood framed to 1/2 ̋)

              7.  Hang Rails (Walls)

                5/8 ̋-thick Solid Wood

                8.  Toe Kick

                  1/2 ̋-thick Plywood, Unfinished, Recessed
                  (Georgetown and Wheaton have matching toe kick)

                  9.  Drawer Box

                    Pre-assembled, Dovetail with 3/4 ̋-thick Solid Wood sides and 3/8 ̋-thick bottom

                    If ordered unassembled:  Trenton and Yarmouth have unassembled Dovetail drawer box

                    10.  Glides

                      Full-extension, soft close, undermount drawer glides

                      11.  Hinges

                        6-way-Adjustable, Concealed, with Soft Close Integrated Hinge

                        • Interiors

                        Finished in Natural Maple

                        (Georgetown, Sturbridge and Kingston have finish matching the doors)

                        • Soft Close Doors

                        All Designer line kitchen cabinets come standard with soft close doors

                        Freight - Most orders will be shipped via LTL curbside freight, no matter how small or how large the order.  If there are limitations to freight delivery, please notify us in advance.  There may be additional charges if limitations require extra charges to complete delivery to the address supplied.

                        The cost for freight delivery is based on the delivery address and is as follows:

                        • A flat $350 for any state bordering the Mississippi river or east of the Mississippi river.
                        • A flat $700 for ND, SD, NE, KS, OK, TX, NM, CO, WY, MT, UT, AZ
                        • A flat $950 for CA, OR, WA, ID, NV

                        FedEx - On small orders of unassembled cabinets, trim, fillers, etc.  You will be able to select FedEx at checkout.  The total will be calculaed at checkout based on the items in your cart.  Typically this runs $35-$40 a cabinet.

                        Returns - Assembled cabinets CANNOT be returned or refunded.  Unassembled (Ready to Assembled/RTA) cabinets, trim, etc can be returned as long as they are in good condition and in their original packaging.  Returns on these items will be subject to return shipping charges and a 25% restocking fee.

                        Depending on the manufacturer, the cabinets typically arrive within 2-4 weeks but please allow 5-6+ weeks for extenuating circumstances that are out of our control like back orders, delivery delays, damages, etc.

                        Unfortunately, those do occur occasionally, though not often. We will take care of replacements (as long as receiving instructions are properly followed), but we need time to send them.

                        Since these things are inevitable and out of our control, we can't be responsible for any delays or inconveniences on your project that might be experienced as a result, so please plan accordingly.
