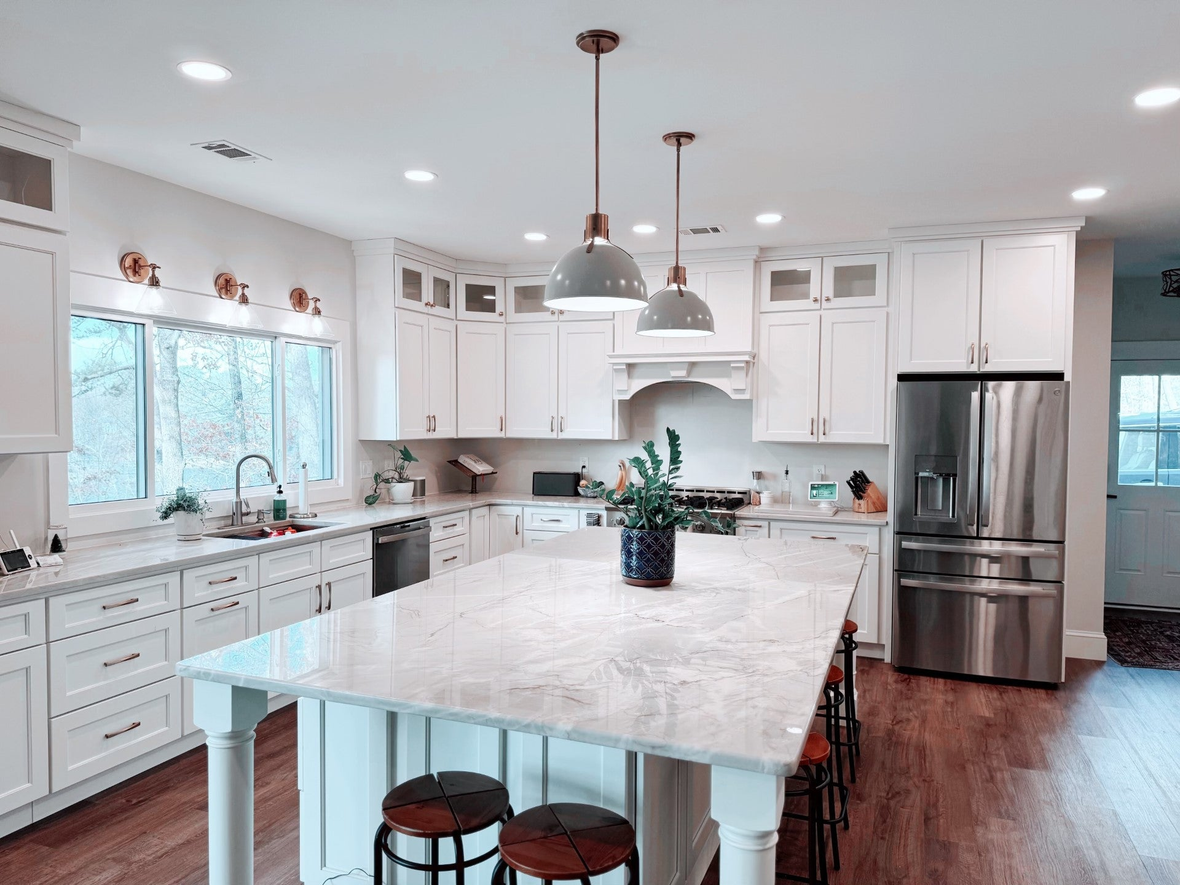

Home / JSI Cabinetry Designer Series - Trenton Recessed

Soft ivory paint for comfort and details that lean ever so slightly modern.

  • Ivory paint
  • Standard with CARB II compliant all plywood box
  • 3/4" Solid wood North American Maple face frame
  • Full-overlay design
  • Recessed-panel door style
  • 5-piece drawer front
  • Dovetail, full-extension, soft-close drawers
    • Vanity drawers are full extension but not soft close
  • Soft-close hinges standard
  • Other accessories available

trenton recessed door and drawer specifications and profile

Designer Series Construction Specs

1.  Face Frames

    3/4" thick x 1 1/2" wide solid North American maple
    2.  End Panel

      1/2 ̋-thick Plywood (Finished to match on exterior)
      3.  Top and Bottom (Walls)

        1/2 ̋-thick Plywood
        4.  Bottom (Bases)

          3/8 ̋-thick Plywood
          5.  Shelves

            Adjustable 3/4 ̋-thick Plywood, Edgebanded on front
            6.  Backs 1/2 ̋-thick Solid Plywood
            7.  Hang Rails (Walls)

              5/8 ̋-thick Solid Wood
              8.  Toe Kick

                1/2 ̋-thick Plywood, Unfinished, Recessed
                9.  Drawer Box

                  Dovetail with 3/4 ̋-thick solid wood sides and 3/8 ̋-thick bottom
                  10.  Glides

                    Full-extension, soft close, undermount drawer glides
                    11.  Hinges

                      6-way-Adjustable, Concealed, with Soft Close Integrated Hinge
                      • Interiors

                      Finished in Natural Maple
                      • Soft Close Doors

                      Standard with soft close hinges

                      $1,115.00 $646.70
                      $1,296.00 $751.68
                      $889.00 $515.62
                      $59.00 $34.22
                      $72.00 $41.76
                      $85.00 $49.30
                      $1,321.00 $766.18
                      $368.00 $213.44
                      $446.00 $258.68
                      $520.00 $301.60
                      $536.00 $310.88
                      $576.00 $334.08
                      $766.00 $444.28
                      $1,384.00 $802.72
                      $614.00 $356.12
                      $1,978.00 $1,147.24
                      $821.00 $476.18
                      $1,526.00 $885.08
                      $1,034.00 $599.72
                      $1,110.00 $643.80
                      $1,114.00 $646.12
                      $652.00 $378.16
                      $875.00 $507.50
                      $733.00 $425.14
                      $974.00 $564.92
                      $775.00 $449.50
                      $1,032.00 $598.56
                      $822.00 $476.76
                      $1,094.00 $634.52
                      $1,001.00 $580.58
                      $1,040.00 $603.20
                      $1,454.00 $843.32
                      $1,172.00 $679.76
                      $1,618.00 $938.44
                      $791.00 $458.78
                      $887.00 $514.46
                      $344.00 $199.52
                      $282.00 $163.56
                      $53.00 $30.74
                      $374.00 $216.92
                      $857.00 $497.06
                      $1,087.00 $630.46
                      $377.00 $218.66
                      $656.00 $380.48
                      $784.00 $454.72
                      $905.00 $524.90
                      $120.00 $69.60
                      $35.00 $20.30
