This is the assembly video for a standard base cabinet. Depending on the product you are viewing, some steps might be slightly different but the overall construction should be the same.
Freight - Most orders will be shipped via LTL curbside freight, no matter how small or how large the order. If there are limitations to freight delivery, please notify us in advance. There may be additional charges if limitations require extra charges to complete delivery to the address supplied.
The cost for freight delivery is based on the delivery address and is as follows:
A flat $350 for any state bordering the Mississippi river or east of the Mississippi river.
A flat $699 for ND, SD, NE, KS, OK, TX, NM, CO, WY, MT, UT, AZ
A flat $999 for CA, OR, WA, ID, NV
FedEx - On small orders of unassembled cabinets, trim, fillers, etc. You will be able to select FedEx at checkout. The total will be calculaed at checkout based on the items in your cart. Typically this runs $35-$40 a cabinet.
***Assembled cabinets are not eligible for return, exchanges, or refunds.
Eligible JSI Cabinetry products are returnable within 30 days. If 30 days have gone by since delivery, unfortunately we can’t offer you a refund or exchange.
A 25% restocking fee will apply to all eligible returns
Wholesale Cabinet Supply and the manufacturer are not responsible for return shipping.
To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.
For more details on Returns and Refunds, read our the "Return and Refund Policy" on our Terms and Conditions page.
Depending on the manufacturer, while most cabinets typically arrive within 4-6 weeks but please allow 6-8+ weeks for extenuating circumstances that are out of our control like back orders, delivery delays, damages, defects, etc. (For "Special Order" cabinets - Add 6 weeks to the timeframes listed above.)
Unfortunately, those do occur occasionally, though not often. We will take care of replacements (as long as receiving instructions are properly followed), but we need time to send them.
Since these things are inevitable and out of our control, we can't be responsible for any delays, additional costs, labor or other inconveniences on your project that might be experienced as a result, so please plan accordingly.

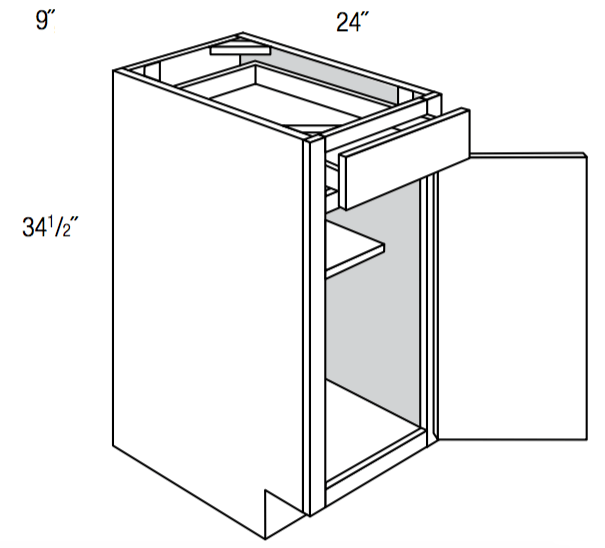

JSI Cabinetry Designer Series Construction Specs
1. Face Frames
3/4" thick x 1 1/2" wide solid North American maple
2. End Panel
1/2 ̋-thick Plywood (Finished to match on exterior)
3. Top and Bottom (Walls)
1/2 ̋-thick Plywood
4. Bottom (Bases)
3/8 ̋-thick Plywood
Adjustable 3/4 ̋-thick Plywood, Edgebanded on front
1/2 ̋-thick Solid Plywood
7. Hang Rails (Walls)
5/8 ̋-thick Solid Wood
8. Toe Kick
1/2 ̋-thick Plywood, Unfinished, Recessed
9. Drawer Box
Dovetail with 3/4 ̋-thick solid wood sides and 3/8 ̋-thick bottom
