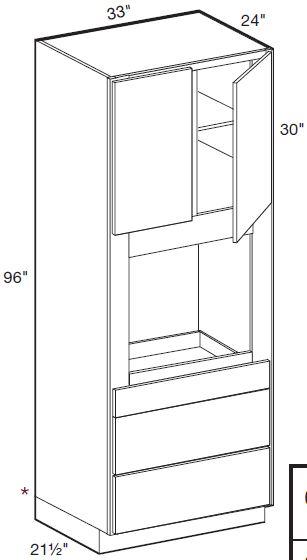

OC332496U - Napa Blended Cream - Universal Oven Cabinet 33" x 96" - Double Doors

General Specs

Tall Cabinet

Double Doors

Width - 3 inches

Depth - 24 inches

Height - 96 inches

Additional Specs

Consult chart for oven cutout dimensions

One adjustable shelf

3 field removable drawers

3" stiles in oven compartment

Loose toe kick box for ease of installation

Cutout openings - Width 27"-31" - Height 22"-69"

The Universal Oven cabinet will need to be modified on the job site to fit your specific appliance. By removing the drawers and stiles between the drawers you can achieve an opening height between 21Ó and 60Ó, and a maximum width of 30Ó. The height of the upper doors will not be affected with these modifications. Your appliance size and the amount of modification required will determine if the drawers will be able to be used. In some instances, the top drawer may be dropped to the bottom position, thus allowing a drawer to remain. Installation and modification of the cabinet is completed on your job site, not in the factory. Support for the appliance is not supplied by the cabinet company and will need to be determined based on appliance manufacture requirement.
