JSI Cabinetry Designer Series

KD-W391824

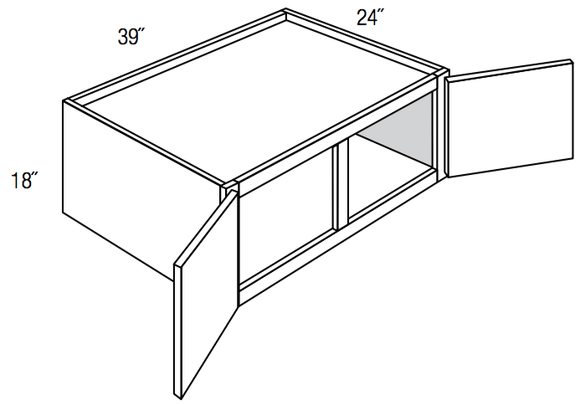

W391824 - Dover White - Refrigerator Wall Cabinet - 18" High x 24" Deep - Double Doors

  • Width 39", height 18", depth 24"
  • 24" deep
  • Refrigerator wall cabinet with two doors
  • Due to it's depth, this cabinet requires support on the front frame. This can either be done with an adjacent wall, pantry cabinet, or refrigerator end panel (See REF84, REF96, and REF3096).

Designer Series Construction Specs




1.  Face Frames

    Material:

    Solid North American Maple

    Dimensions:

    3/4 ̋ x 11/2 ̋ (Sturbridge, Dover, Essex, Trenton, Kingston, Yarmouth)

    3/4 ̋ x 19/16 ̋ Mortise & Tenon Construction (Georgetown and Wheaton)

    2.  End Panel

      1/2 ̋-thick Plywood

       - Finished to match on exterior

      3.  Top and Bottom (Walls)

        1/2 ̋-thick Plywood

        4.  Bottom (Bases)

          3/8 ̋-thick Plywood

          5.  Shelves

            Adjustable 3/4 ̋-thick Plywood, Edgebanded on front

            6.  Back

              1/2 ̋-thick Solid Plywood

              (Georgetown and Wheaton have 1/8 ̋-thick Plywood framed to 1/2 ̋)

              7.  Hang Rails (Walls)

                5/8 ̋-thick Solid Wood

                8.  Toe Kick

                  1/2 ̋-thick Plywood, Unfinished, Recessed
                  (Georgetown and Wheaton have matching toe kick)

                  9.  Drawer Box

                    Pre-assembled, Dovetail with 3/4 ̋-thick Solid Wood sides and 3/8 ̋-thick bottom

                    If ordered unassembled:  Trenton and Yarmouth have unassembled Dovetail drawer box

                    10.  Glides

                      Full-extension, soft close, undermount drawer glides

                      11.  Hinges

                        6-way-Adjustable, Concealed, with Soft Close Integrated Hinge

                        • Interiors

                        Finished in Natural Maple


                        (Georgetown, Sturbridge and Kingston have finish matching the doors)

                        • Soft Close Doors

                        All Designer line kitchen cabinets come standard with soft close doors
