JSI Cabinetry Designer Series

KD-WDC2442

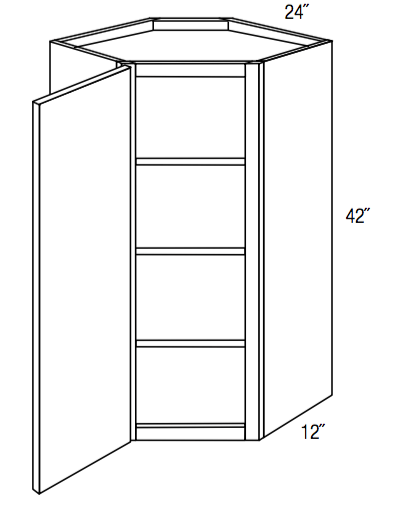

WDC2442 - Dover White - Corner Diagonal Wall Cabinet - Single Door

  • Width 24", height 42", depth 12"
  • Wall diagonal corner cabinet with single door
  • Three adjustable shelves
  • Requires 24" from the corner in each direction for installation

Designer Series Construction Specs




1.  Face Frames

    Material:

    Solid North American Maple

    Dimensions:

    3/4 ̋ x 11/2 ̋ (Sturbridge, Dover, Essex, Trenton, Kingston, Yarmouth)

    3/4 ̋ x 19/16 ̋ Mortise & Tenon Construction (Georgetown and Wheaton)

    2.  End Panel

      1/2 ̋-thick Plywood

       - Finished to match on exterior

      3.  Top and Bottom (Walls)

        1/2 ̋-thick Plywood

        4.  Bottom (Bases)

          3/8 ̋-thick Plywood

          5.  Shelves

            Adjustable 3/4 ̋-thick Plywood, Edgebanded on front

            6.  Back

              1/2 ̋-thick Solid Plywood

              (Georgetown and Wheaton have 1/8 ̋-thick Plywood framed to 1/2 ̋)

              7.  Hang Rails (Walls)

                5/8 ̋-thick Solid Wood

                8.  Toe Kick

                  1/2 ̋-thick Plywood, Unfinished, Recessed
                  (Georgetown and Wheaton have matching toe kick)

                  9.  Drawer Box

                    Pre-assembled, Dovetail with 3/4 ̋-thick Solid Wood sides and 3/8 ̋-thick bottom

                    If ordered unassembled:  Trenton and Yarmouth have unassembled Dovetail drawer box

                    10.  Glides

                      Full-extension, soft close, undermount drawer glides

                      11.  Hinges

                        6-way-Adjustable, Concealed, with Soft Close Integrated Hinge

                        • Interiors

                        Finished in Natural Maple


                        (Georgetown, Sturbridge and Kingston have finish matching the doors)

                        • Soft Close Doors

                        All Designer line kitchen cabinets come standard with soft close doors

                        Freight - Most orders will be shipped via LTL curbside freight, no matter how small or how large the order.  That includes delivery to the jobsite and liftgate.

                        The cost for freight delivery is based on the delivery address and is as follows:

                        • A flat $350 for any state bordering the Mississippi river or east of the Mississippi river.
                        • A flat $700 for ND, SD, NE, KS, OK, TX, NM, CO, WY, MT, UT, AZ
                        • A flat $950 for CA, OR, WA, ID, NV

                        FedEx - On small orders of unassembled cabinets, trim, fillers, etc.  You will be able to select FedEx at checkout.  The total will be calculaed at checkout based on the items in your cart.  Typically this runs $35-$40 a cabinet.

                        Returns - Assembled cabinets CANNOT be returned or refunded.  Unassembled (Ready to Assembled/RTA) cabinets, trim, etc can be returned as long as they are in good condition and in their original packaging.  Returns on these items will be subject to return shipping charges and a 25% restocking fee.

                        The cabinets typically arrive in about 2-3 weeks but please allow 4-5+ weeks for extenuating circumstances like out of stock items, delivery delays, damages, etc.  Unfortunately, all of those do occur occasionally, though not often.  We will take care of replacements (as long as receiving instructions are properly followed), but we need time to send them.  Ultimately, we cannot be responsible for any delays on your project that might be experienced as a result of said delays or damages, so please plan accordingly and allow plenty of time when ordering your cabinets.
