General Cabinet Specs

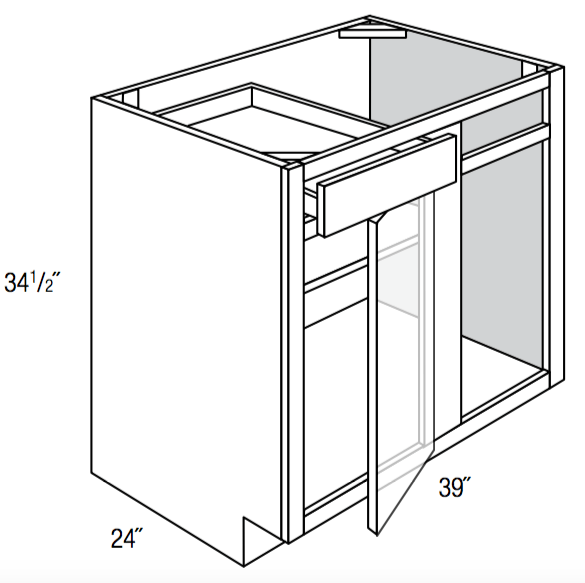

- Width 39", height 34 1/2", depth 24"
- Base Blind Corner Cabinet with single door and single drawer
- Adjustable half depth shelf

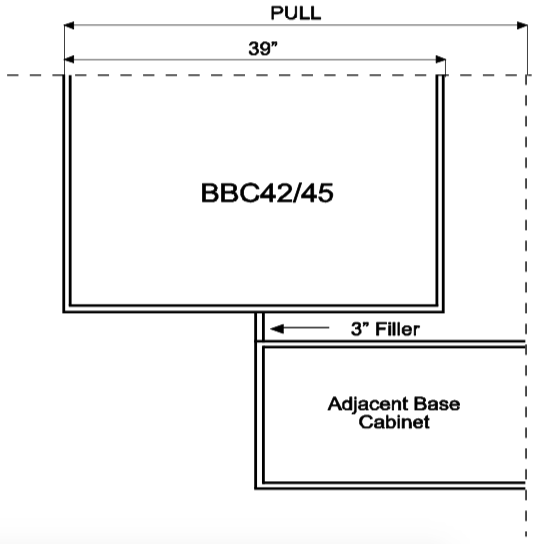

- Actual cabinet width is 39" but it must be 'pulled' at least 5 1/2" from the wall when installed.
- Minimum pull is 44 1/2" (See 2nd picture)
- Maximum pull is 46" (See 2nd picture)
- This means there will be an empty space between the cabinet and the adjacent wall when installed.
- Door/Drawer opening is 15".
- We also recommend installed a 3" filler (minimum) before installing the first cabinet on the adjacent wall. See second picture for illustration.
- To match adjacent 3" reveal on filler, pull cabinet to 46"
- Filler sold separately - See WF330.
- If ordering assembled, specify which side is 'blind'.
- Example: Both pictures are right side blind.
Product title
$19.99 | $24.99
Product title
$19.99 | $24.99
Product title
$19.99 | $24.99
Product title
$19.99 | $24.99
- General Cabinet Specs
- Door Style Specs - Essex Castle
- Product Video - Base Cabinet
- Shipping/Returns
- Useful Links
- Lead Time
- Width 39", height 34 1/2", depth 24"
- Base Blind Corner Cabinet with single door and single drawer
- Adjustable half depth shelf
- Actual cabinet width is 39" but it must be 'pulled' at least 5 1/2" from the wall when installed.
- Minimum pull is 44 1/2" (See 2nd picture)
- Maximum pull is 46" (See 2nd picture)
- This means there will be an empty space between the cabinet and the adjacent wall when installed.
- Door/Drawer opening is 15".
- We also recommend installed a 3" filler (minimum) before installing the first cabinet on the adjacent wall. See second picture for illustration.
- To match adjacent 3" reveal on filler, pull cabinet to 46"
- Filler sold separately - See WF330.
- If ordering assembled, specify which side is 'blind'.
- Example: Both pictures are right side blind.
Specifications
- Dark gray paint on Maple Shaker Door
- Standard with CARB II compliant all plywood box
- 3/4" North American Maple Face Frame
- Full-overlay design
- Shaker-style door
- Matching drawer front
- 3/4˝ dovetail, full-extension, soft-close drawers
- Soft-close hinges standard
- Other accessories available
