Quality materials and construction paired with simple and quick assembly make Stonecreek Cabinetry the standout choice.
To see our full selection of Stonecreek Cabinetry door styles, click here - Stonecreek Cabinetry
![]() |
![]() |
A - OVERLAY |
Full-overlaydoors and drawer fronts |
B - FACE FRAME |
3/4” (19 mm) x 1-1/2” (36 mm) solid birch face frame |

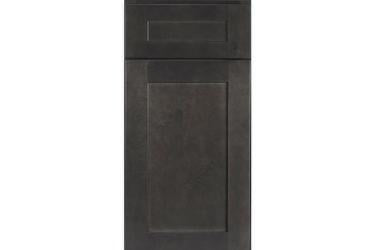

C - DOORS |
Stained doors are 5-piece birch solid wood cope-and-stick construction with a 3/4” (19 mm) thick, 2-3/4” wide door frame and 1/4" veneered center panel |
D - HINGES |
6-way adjustablesoft-closeconcealed hinges |
E - DRAWER FRONTS |
5-piecedrawer fronts with 3/4” (19mm) thick frame and 1/4" thick center panel |
F - DRAWERS |
5/8” (18 mm) thick solid wood dovetail drawer boxes with 3/8” thick veneered plywood drawer bottom |
G - DRAWER SLIDES |
Premium full extension, 100 lbdynamicweight rated,adjustable undermount soft-close slides |
H - SHELVES |
3/4” (16 mm) thick veneered plywood adjustable shelves – half depth in base cabinets |
I - END PANELS |
1/2” (12 mm) thick plywood end panels with exterior finish to match UV coated, natural birch interior |
J - TOP/BOTTOM PANELS |
1/2” (12 mm) thick plywood captured top and bottom UV coated, natural birch interior |
K - BACK PANELS |
UV coated plywood back panel |
L - CONSTRUCTION |
All plywood cabinet construction Dovetail / Pocket screw assembly system 3/4” (19 mm) thick solid wood corner braces 4-1/2” (114 mm) high toe kick |
While shopping NorthPoint cabinetry is limited to only our PRO Division customers, anyone can request a quote for NorthPoint cabinetry from us.
So, if you are not in our PRO Division, fill out the form below and one of our designers will be in touch soon with a quote for you!
